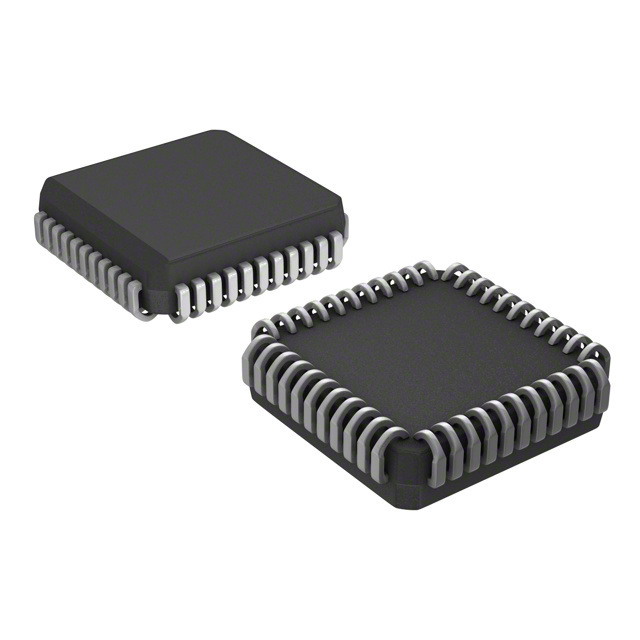

ATF1504ASV-15JU44

SKU: 95656

Manufacturer: Microchip Technology

CPLD ATF1500 Family 1.5K Gates 64 Macro Cells 76.9MHz 3.3V 44-Pin PLCC Tube

1060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.2
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	ATF1500
Program Memory Type	ROMless
Number of Global Clocks	3
Number of Macro Cells	64
Product Terms	40
Device System Gates	1500
Data Gate	No
Maximum Number of User I/Os	32
Number of Flip Flops	64
In-System Programmability	Yes
Programmability	Yes
Reprogrammability Support	Yes
Maximum Internal Frequency (MHz)	76.9
Maximum Clock to Output Delay (ns)	9
Maximum Propagation Delay Time (ns)	15
Speed Grade	15
Individual Output Enable Control	Yes
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	3.6
Typical Operating Supply Voltage (V)	3.3
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Tradename	ATF1500
Pin Count	44
Standard Package Method	LCC
Original Package	PLCC
Terminal Form	Surface Mount
Package Height	3.48(Max)
Package Length	16.7(Max)
Package Width	16.7(Max)
PCB changed	44
