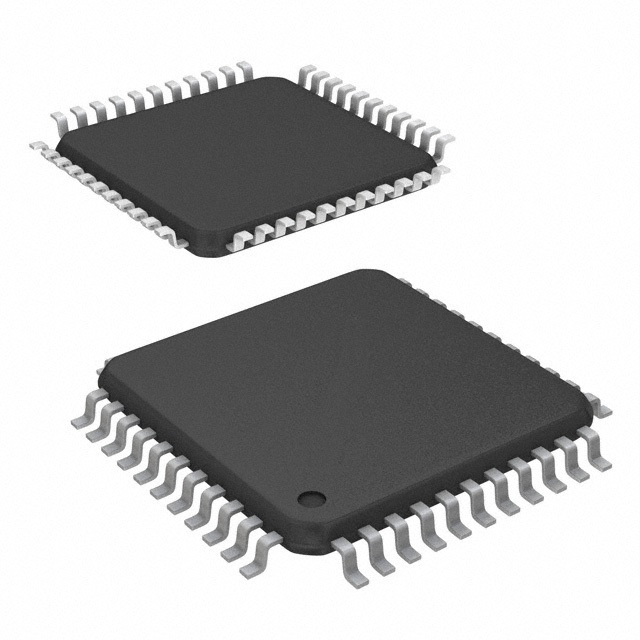

ATF1500A-10AU

SKU: 107810

Manufacturer: Microchip Technology

CPLD ATF1500 Family 1K Gates 32 Macro Cells 76.9MHz 5V 44-Pin TQFP Tray

4030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
Automotive	No
PPAP	No
Family Name	ATF1500
Program Memory Type	FLASH
Number of Macro Cells	32
Product Terms	40
Device System Gates	1000
Data Gate	No
Maximum Number of User I/Os	32
Number of Flip Flops	32
In-System Programmability	No
Programmability	Yes
Reprogrammability Support	Yes
Maximum Internal Frequency (MHz)	125
Maximum Clock to Output Delay (ns)	10
Maximum Propagation Delay Time (ns)	10
Speed Grade	10
Individual Output Enable Control	Yes
Operating Supply Voltage-Min (V)	4.5
Operating Supply Voltage-Max (V)	5.5
Typical Operating Supply Voltage (V)	5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Tradename	ATF1500
Original Package	TQFP
Pin Count	44
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1
Package Length	10
Package Width	10
PCB changed	44
