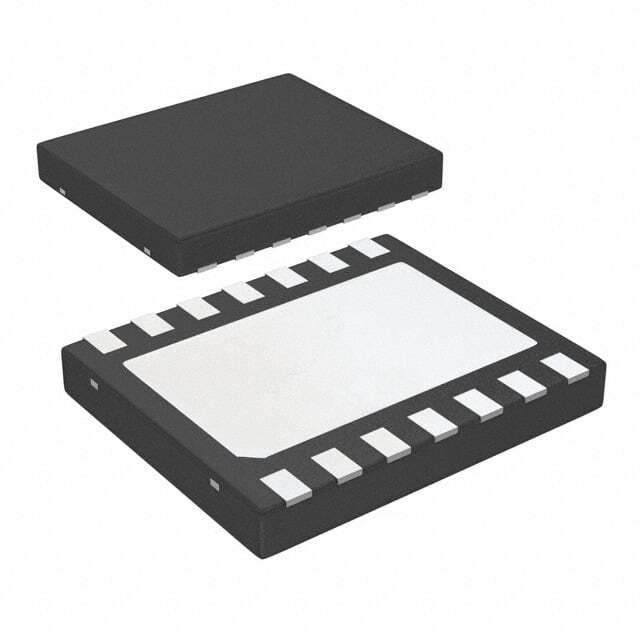

ATA6670-FFQW-1

SKU: 37205

Manufacturer: Microchip Technology

LIN Transceiver 20kBd Automotive 14-Pin DFN EP T/R

2580 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Yes
Built-in Options	Stand Alone
LIN Specifications	SAE J2602-2
LIN Bus Wake-up Capable	Yes
External Wake-up Pin	Yes
Maximum Data Rate (kBd)	20
I/O Voltages for Controller (V)	5
Minimum LIN Bus Voltage (V)	-27
Maximum LIN Bus Voltage (V)	40
Minimum Single Supply Voltage (V)	5
Typical Single Supply Voltage (V)	13.5
Maximum Single Supply Voltage (V)	27
Maximum ESD Protection Voltage (kV)	±0.75(Min)@CDM/±6(Min)@HBM/±0.2(Min)@MM
Maximum Supply Current (mA)	2
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	DFN EP
Pin Count	14
Terminal Form	Surface Mount
Package Height	0.85
Package Length	4.5
Package Width	3
