ATA663454-GDQW

SKU: 60560

Manufacturer: Microchip Technology

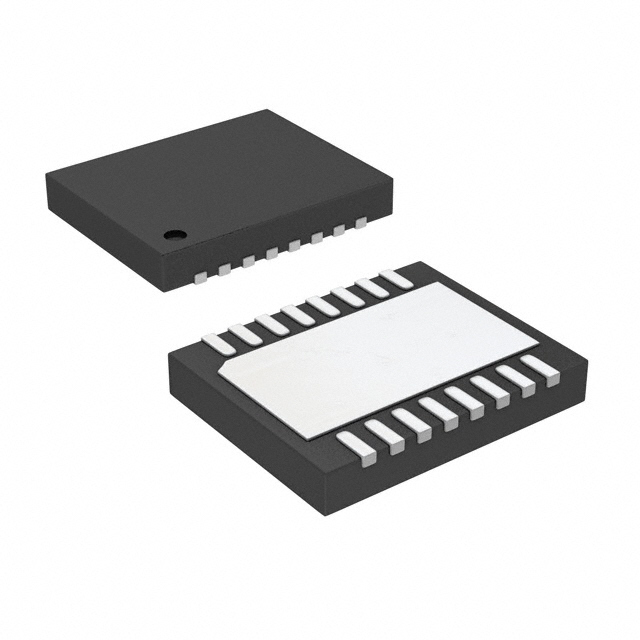

LIN Transceiver with Integrated Vreg 5V 20kBd Automotive 16-Pin VDFN EP T/R

1660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	Yes
PPAP	Unknown
Built-in Options	Voltage Regulator
LIN Specifications	LIN 2.2A
LIN Bus Wake-up Capable	Yes
External Wake-up Pin	Yes
Maximum Data Rate (kBd)	20
Regulator Voltage (V)	5
I/O Voltages for Controller (V)	5
Minimum LIN Bus Voltage (V)	-27
Maximum LIN Bus Voltage (V)	40
Minimum Single Supply Voltage (V)	5
Typical Single Supply Voltage (V)	13.5
Maximum Single Supply Voltage (V)	28
Maximum ESD Protection Voltage (kV)	±6(Min)
Maximum Supply Current (mA)	1
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tape and Reel
Standard Package Method	DFN
Original Package	VDFN EP
Pin Count	16
Terminal Form	Surface Mount
Package Height	0.85
Package Length	5.5
Package Width	3
PCB changed	16
