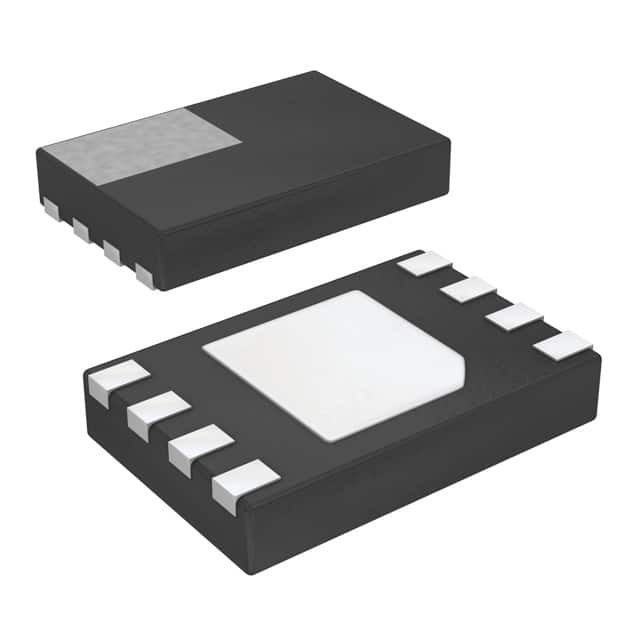

AT93C86AY6-10YH-1.8

SKU: 74505

Manufacturer: Microchip Technology

EEPROM Serial-3Wire 16K-bit 2K x 8/1K x 16 2.5V/3.3V/5V 8-Pin UDFN EP

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
HTS	8542.32.00.51
Automotive	No
PPAP	No
Chip Density (bit)	16K
Organization	1Kx16
Address Bus Width (bit)	11
Programmability	Yes
Data Retention (Year)	100
Max. Access Time (ns)	1000
Maximum Operating Frequency (MHz)	0.25
Interface Type	Serial-3Wire
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	5.5
Operating Current (mA)	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Hardware Data Protection	Yes
Number of Bits per Word (bit)	8
Pin Count	8
Standard Package Method	DFN
Original Package	UDFN EP
Terminal Form	Surface Mount
Package Height	0.55(Max)
Package Length	2
Package Width	3
PCB changed	8
