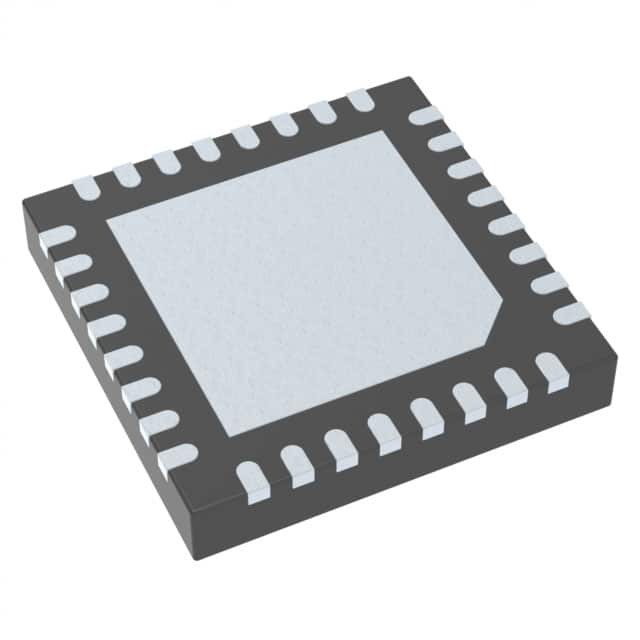

AT90PWM161-16MN

SKU: 122060

Manufacturer: Microchip Technology

MCU 8-bit AVR RISC 16KB Flash 3.3V/5V 32-Pin QFN EP Tray

1140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	AT90
Instruction Set Architecture	RISC
Device Core	AVR
Core Architecture	AVR
Maximum CPU Frequency (MHz)	16
Maximum Clock Rate (MHz)	16
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	16KB
RAM Size	1KB
Programmability	Yes
Interface Type	SPI
Number of I/Os	20
No. of Timers	1
Number of ADCs	Single
ADC Channels	11
ADC Resolution (bit)	10
Number of DACs	Single
DAC Channels	1
DAC Resolution (bit)	10
USART	0
UART	0
USB	0
SPI	1
I2C	0
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	3
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Extended
Packing Method	Tray
Original Package	QFN EP
Pin Count	32
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	5
Package Width	5
PCB changed	32
