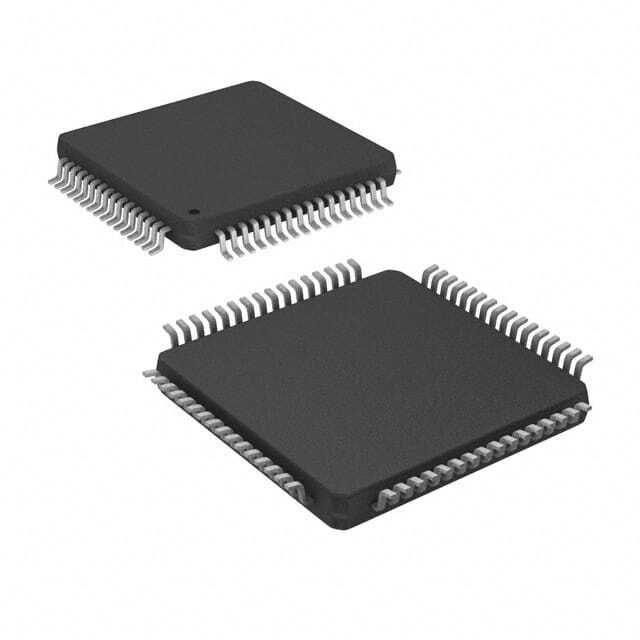

AT90CAN128-15AT1

SKU: 88555

Manufacturer: Microchip Technology

MCU 8-bit AVR RISC 128KB Flash 3.3V/5V Automotive 64-Pin TQFP T/R

4530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	Yes
PPAP	Unknown
Family Name	AT90
Instruction Set Architecture	RISC
Device Core	AVR
Core Architecture	AVR
Maximum CPU Frequency (MHz)	16
Maximum Clock Rate (MHz)	16
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	128KB
RAM Size	4KB
Maximum Expanded Memory Size	64KB
Programmability	Yes
Interface Type	CAN/SPI/USART
Number of I/Os	53
No. of Timers	4
PWM	2
Number of ADCs	Single
ADC Channels	8
ADC Resolution (bit)	10
USART	2
UART	0
USB	0
SPI	1
I2C	0
I2S	0
CAN	1
Ethernet	0
Watchdog	1
Analog Comparators	1
Real Time Clock	Yes
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Pin Count	64
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	14.1(Max)
Package Width	14.1(Max)
PCB changed	64
