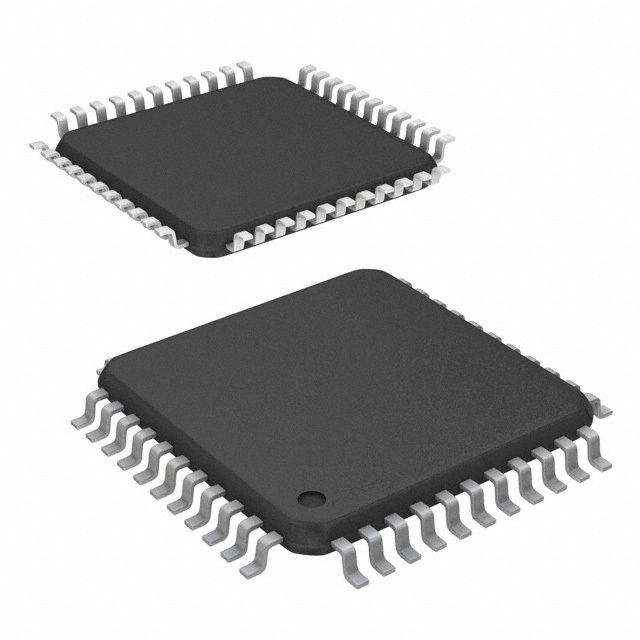

AT89LS8252-12AI

SKU: 95635

Manufacturer: Microchip Technology

MCU 8-bit 8051 CISC 8KB Flash 3.3V/5V 44-Pin TQFP

1100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	AT89
Instruction Set Architecture	CISC
Device Core	8051
Core Architecture	8051
Maximum CPU Frequency (MHz)	12
Maximum Clock Rate (MHz)	12
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	8KB
RAM Size	256B
Programmability	Yes
Interface Type	SPI/UART
Number of I/Os	32
No. of Timers	3
Timers Resolution (bit)	16/16/16
USART	0
UART	1
USB	0
SPI	1
I2C	0
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Original Package	TQFP
Pin Count	44
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	10.1(Max)
Package Width	10.1(Max)
PCB changed	44
