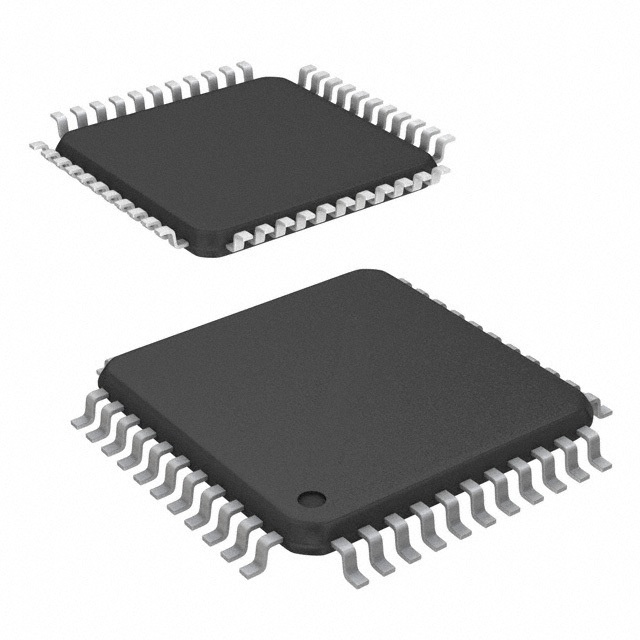

AT89C51IC2-RLTUL

SKU: 138244

Manufacturer: Microchip Technology

MCU 8-bit 8051 CISC 32KB Flash 3.3V 44-Pin LQFP Tray

1760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.2
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	AT89
Instruction Set Architecture	CISC
Device Core	8051
Core Architecture	8051
Maximum CPU Frequency (MHz)	60
Maximum Clock Rate (MHz)	60
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	32KB
RAM Size	1.25KB
Maximum Expanded Memory Size	64KB
Programmability	Yes
Interface Type	I2C/SPI/UART
Number of I/Os	32
No. of Timers	3
PWM	5
Number of ADCs	Single
ADC Channels	8
ADC Resolution (bit)	10
USART	0
UART	1
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Power Dissipation (mW)	1000
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Original Package	LQFP
Pin Count	44
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	10.1(Max)
Package Width	10.1(Max)
PCB changed	44
