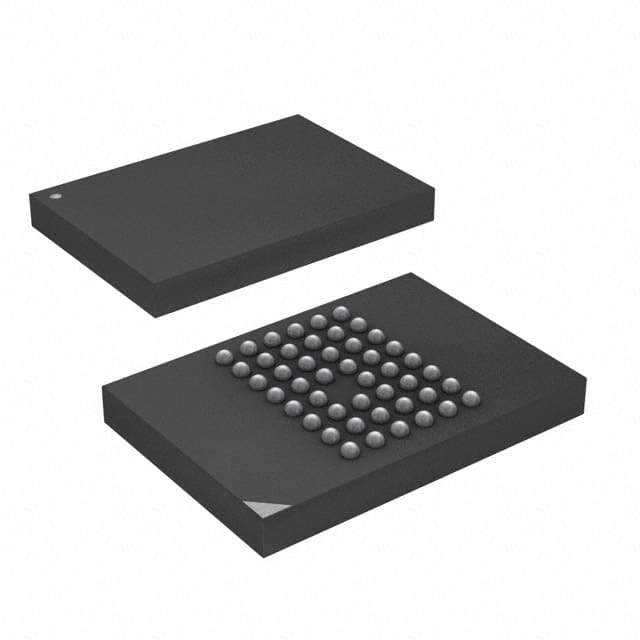

AT49BV320D-70CU

SKU: 32057

Manufacturer: Microchip Technology

NOR Flash Parallel 3V/3.3V 32M-bit 2M x 16 70ns 47-Pin CSP-BGA

3060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991b.1.a.
Part Status	Obsolete
HTS	8542.32.00.71
Automotive	No
PPAP	No
Cell Type	NOR
Chip Density (bit)	32M
Architecture	Sectored
Boot Block	Yes
Block Organization	Asymmetrical
Location of Boot Block	Bottom
Address Bus Width (bit)	21
Sector Size	64Kbyte x 63
Number of Bits/Word (bit)	16
Number of Words	2M
Programmability	Yes
Timing Type	Asynchronous
Max. Access Time (ns)	70
Maximum Erase Time (s)	6/Sector
Maximum Programming Time (ms)	0.12/Word
OE Access Time (ns)	20
Interface Type	Parallel
Operating Supply Voltage-Min (V)	2.65
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Programming Voltage (V)	10
Operating Current (mA)	15
Program Current (mA)	25
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Command Compatible	No
ECC Support	No
Support of Page Mode	No
Original Package	CSP-BGA
Pin Count	47
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1(Max) - 0.22(Min)
Package Length	10
Package Width	7
PCB changed	47
