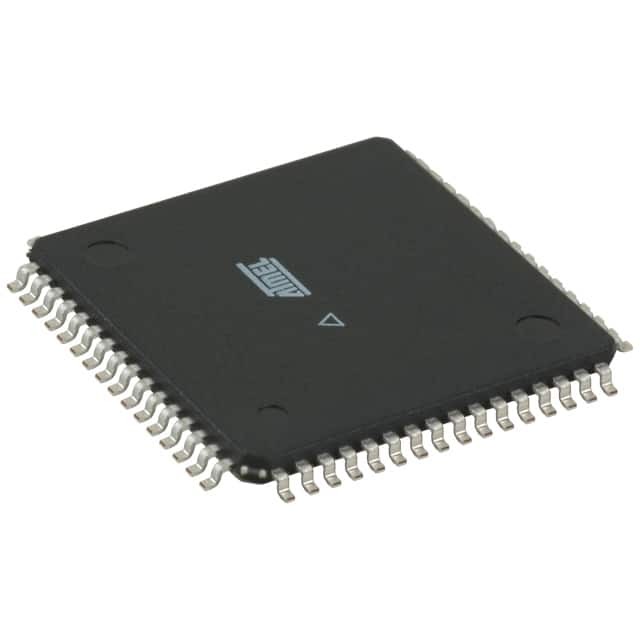

AT32UC3C2256C-A2ZR

SKU: 129096

Manufacturer: Microchip Technology

MCU 32-bit AVR RISC 256KB Flash 3.3V/5V Automotive 64-Pin TQFP T/R

3130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.2
Part Status	Unconfirmed
Automotive	Yes
PPAP	Unknown
Family Name	AT32
Instruction Set Architecture	RISC
Device Core	AVR
Core Architecture	AVR
Maximum CPU Frequency (MHz)	66
Maximum Clock Rate (MHz)	66
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	256KB
RAM Size	68KB
Programmability	Yes
Interface Type	CAN/Ethernet/I2C/I2S/SPI/USART/USB
Number of I/Os	45
No. of Timers	3
PWM	8
Number of ADCs	Single
ADC Channels	11
ADC Resolution (bit)	12
Number of DACs	Single
DAC Channels	2
DAC Resolution (bit)	12
USART	4
UART	0
USB	1
SPI	1
I2C	2
I2S	1
CAN	2
Ethernet	1
Watchdog	1
Analog Comparators	2
Real Time Clock	Yes
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	TQFP
Pin Count	64
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	10
Package Width	10
PCB changed	64
