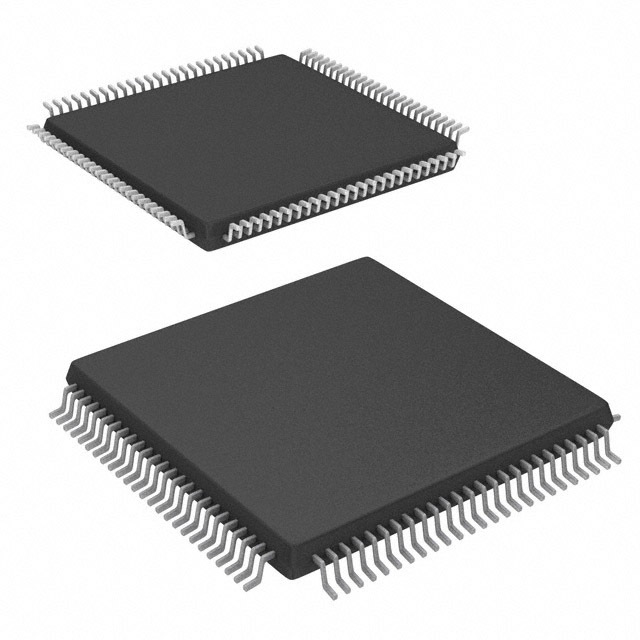

AT32UC3C1256C-AUR

SKU: 143311

Manufacturer: Microchip Technology

MCU 32-bit AVR RISC 256KB Flash 3.3V/5V 100-Pin TQFP T/R

2870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991a.2.
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	AT32
Instruction Set Architecture	RISC
Device Core	AVR
Core Architecture	AVR
Maximum CPU Frequency (MHz)	66
Maximum Clock Rate (MHz)	66
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	256KB
RAM Size	68KB
Programmability	Yes
Interface Type	CAN/Ethernet/I2C/I2S/SPI/USART/USB
Number of I/Os	81
No. of Timers	6
PWM	8
Number of ADCs	Single
ADC Channels	16
ADC Resolution (bit)	12
Number of DACs	Single
DAC Channels	4
DAC Resolution (bit)	12
USART	5
UART	0
USB	1
SPI	2
I2C	3
I2S	1
CAN	2
Ethernet	1
Watchdog	1
Analog Comparators	4
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	100
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	14.1(Max)
Package Width	14.1(Max)
PCB changed	100
