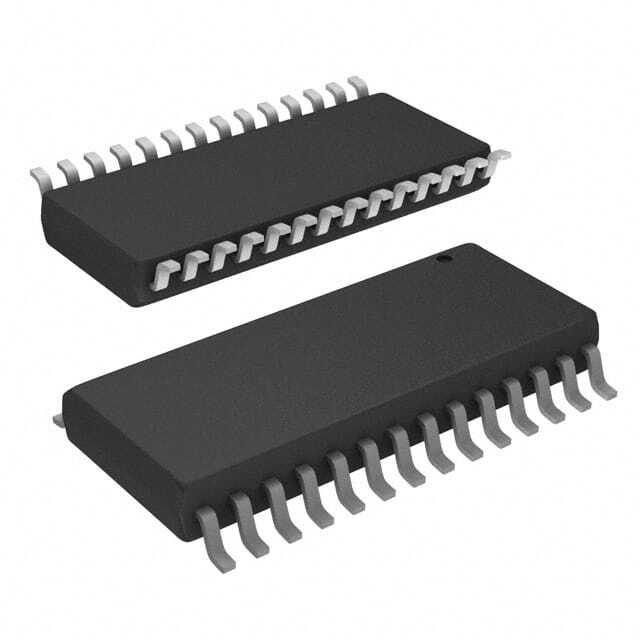

AT28HC64BF-12SU-T

SKU: 53465

Manufacturer: Microchip Technology

EEPROM Parallel 64K-bit 8K x 8 5V 28-Pin SOIC T/R

1540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.32.00.51
Automotive	No
PPAP	No
Chip Density (bit)	64K
Organization	8Kx8
Address Bus Width (bit)	13
Programmability	Yes
Data Retention (Year)	10
Max. Access Time (ns)	120
Output Enable Access Time (ns)	50
Interface Type	Parallel
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Programming Voltage (V)	4.5 to 5.5
Operating Current (mA)	40
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Hardware Data Protection	Yes
Number of Bits per Word (bit)	8
Original Package	SOIC
Pin Count	28
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	18.1(Max)
Package Width	7.6(Max)
PCB changed	28
