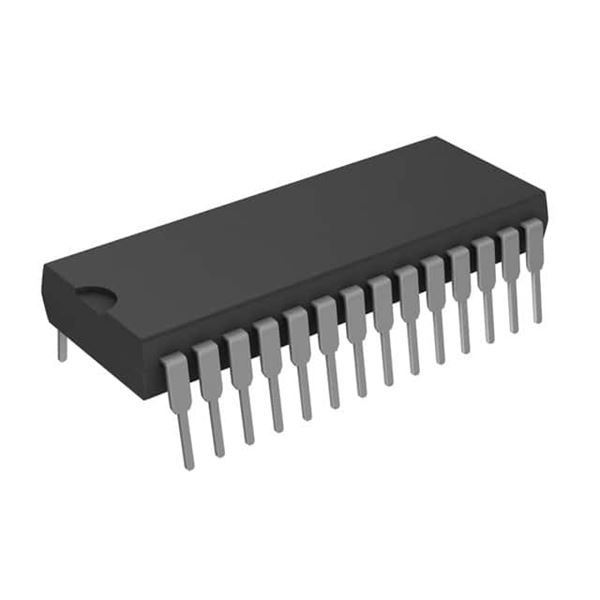

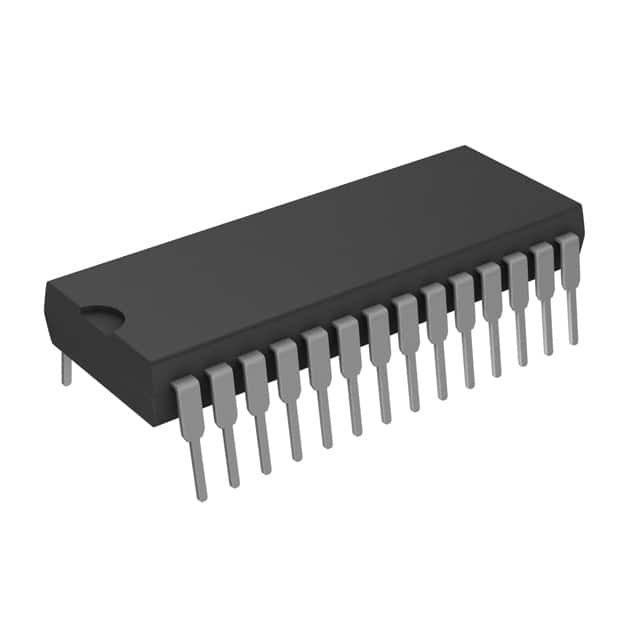

AT28C64B-15PU

SKU: 17952

Manufacturer: Microchip Technology

EEPROM Parallel 64K-bit 8K x 8 5V 28-Pin PDIP W Tube

20160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.32.00.51
Automotive	No
PPAP	No
Chip Density (bit)	64K
Organization	8Kx8
Address Bus Width (bit)	13
Programmability	Yes
Data Retention (Year)	10
Max. Access Time (ns)	150
Output Enable Access Time (ns)	70
Process Technology	CMOS
Interface Type	Parallel
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Programming Voltage (V)	4.5 to 5.5
Operating Current (mA)	40
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Hardware Data Protection	Yes
Packing Method	Tube
Number of Bits per Word (bit)	8
Pin Count	28
Standard Package Method	DIP
Original Package	PDIP W
Terminal Form	Through Hole
Package Height	3.94(Max)
Package Length	37.3(Max)
Package Width	14.4(Max)
PCB changed	28
