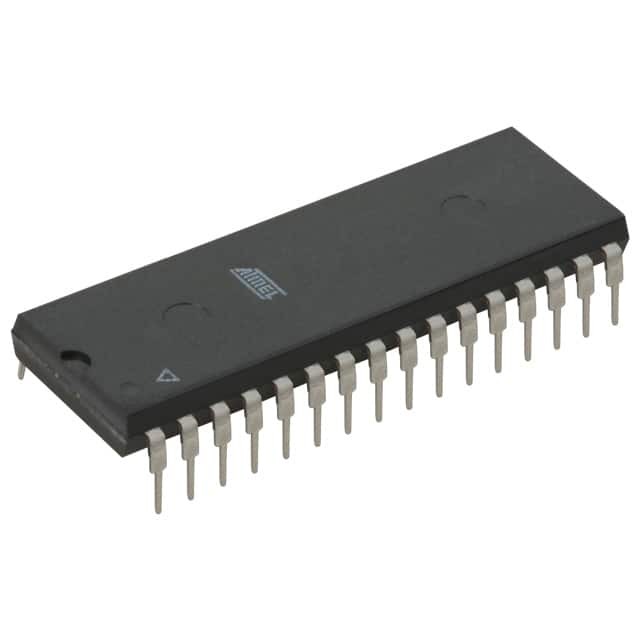

AT27C020-90PU

SKU: 74474

Manufacturer: Microchip Technology

EPROM OTP 2M-bit 256K x 8 90ns 32-Pin PDIP W Tube

1070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.32.00.61
Automotive	No
PPAP	No
Chip Density (bit)	2M
Organization	256Kx8
Programmability	Yes
Reprogramming Technique	OTP
Max. Access Time (ns)	90
Output Enable Access Time (ns)	35
In-System Programmability	External
Interface Type	Parallel
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Programming Voltage (V)	12.75 to 13.25
Maximum Operating Current (mA)	25
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Pin Count	32
Standard Package Method	DIP
Original Package	PDIP W
Terminal Form	Through Hole
Package Height	4.83(Max) - 0.38(Min)
Package Length	42.29(Max)
Package Width	13.97(Max)
PCB changed	32
