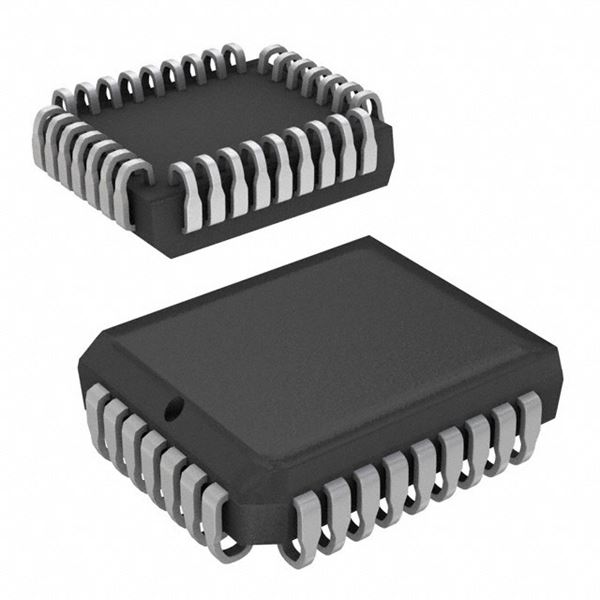

AT27BV256-70JU

SKU: 138235

Manufacturer: Microchip Technology

EPROM OTP 256K-bit 32K x 8 70ns 32-Pin PLCC Tube

1230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.32.00.61
Automotive	No
PPAP	No
Chip Density (bit)	256K
Organization	32Kx8
Programmability	Yes
Reprogramming Technique	OTP
Max. Access Time (ns)	70
Output Enable Access Time (ns)	50
Process Technology	CMOS
In-System Programmability	External
Interface Type	Parallel
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Programming Voltage (V)	12.75 to 13.25
Maximum Operating Current (mA)	20
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Pin Count	32
Standard Package Method	LCC
Original Package	PLCC
Terminal Form	Surface Mount
Package Height	2.79(Min)
Package Length	14.05(Max)
Package Width	11.51(Max)
PCB changed	32
