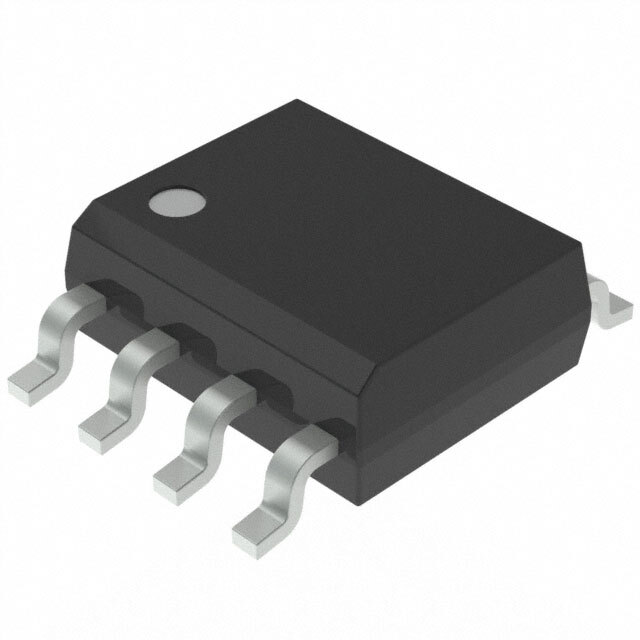

AT25F1024AN-10SU-2.7

SKU: 95620

Manufacturer: Microchip Technology

NOR Flash Serial-SPI 3.3V 1M-bit 128K x 8 9ns 8-Pin SOIC

6390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.32.00.51
Automotive	No
PPAP	No
Cell Type	NOR
Chip Density (bit)	1M
Architecture	Sectored
Boot Block	No
Block Organization	Symmetrical
Address Bus Width (bit)	1
Sector Size	32Kbyte x 4
Page Size	256byte
Number of Bits/Word (bit)	8
Number of Words	128K
Programmability	Yes
Timing Type	Synchronous
Max. Access Time (ns)	9
Maximum Erase Time (s)	1.1/Sector
Maximum Programming Time (ms)	0.05/Byte
Interface Type	Serial-SPI
Operating Supply Voltage-Min (V)	2.7
Maximum Operating Frequency (MHz)	33
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Current (mA)	45
Program Current (mA)	45
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Command Compatible	No
ECC Support	No
Support of Page Mode	Yes
Minimum Endurance (Cycles)	10000(Typ)
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	3.99(Max)
PCB changed	8
