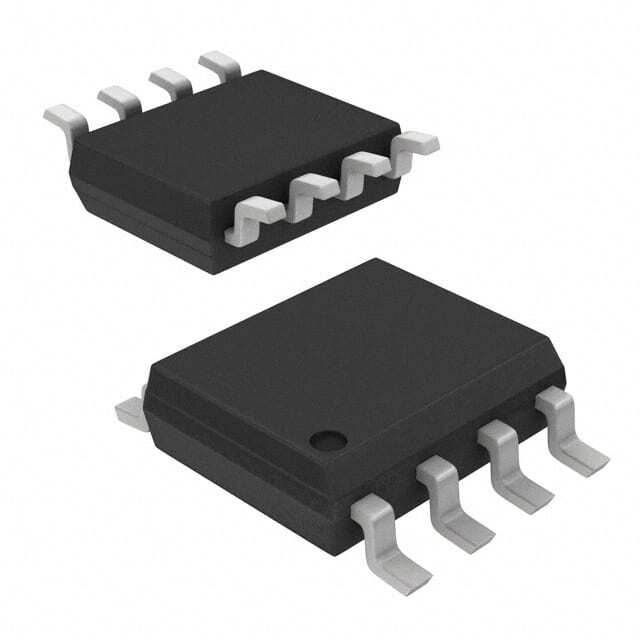

AT24C256W-10SC

SKU: 10687

Manufacturer: Microchip Technology

EEPROM Serial-2Wire 256K-bit 32K x 8 5V 8-Pin SOIC EIAJ

3430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	NRND
Automotive	No
PPAP	No
Chip Density (bit)	256K
Organization	32Kx8
Programmability	Yes
Data Retention (Year)	40
Max. Access Time (ns)	550
Maximum Operating Frequency (MHz)	1
Interface Type	Serial-2Wire
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Operating Current (mA)	3
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Hardware Data Protection	Yes
Original Package	SOIC EIAJ
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.91(Max)
Package Length	5.35(Max)
Package Width	5.4(Max)
PCB changed	8
