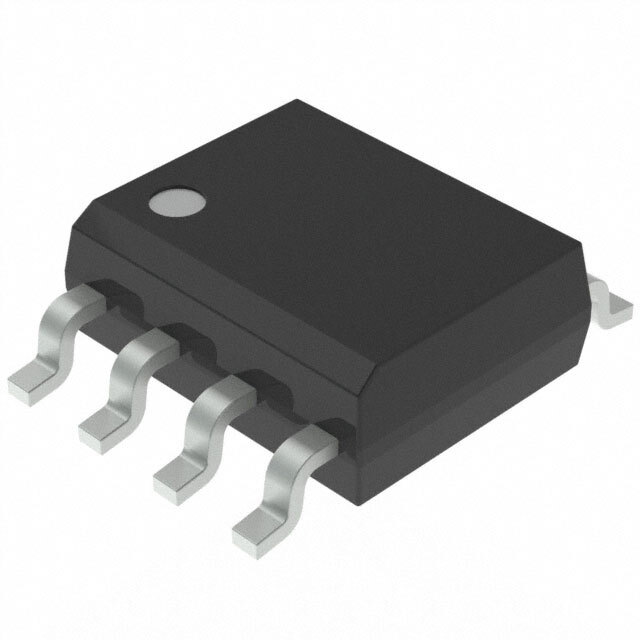

AT24C04D-SSHM-T

SKU: 145218

Manufacturer: Microchip Technology

EEPROM Serial-I2C 4K-bit 512 x 8 1.8V/2.5V/3.3V 8-Pin SOIC T/R

7280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.32.00.51
Automotive	No
PPAP	No
Chip Density (bit)	4K
Organization	512x8
Address Bus Width (bit)	2
Programmability	Yes
Data Retention (Year)	100(Min)
Max. Access Time (ns)	450
Maximum Operating Frequency (MHz)	1
Interface Type	Serial-I2C
Operating Supply Voltage-Min (V)	1.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Current (mA)	1
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Hardware Data Protection	Yes
Packing Method	Tape and Reel
Number of Bits per Word (bit)	8
Original Package	SOIC
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.48(Max)
Package Length	4.98(Max)
Package Width	3.99(Max)
PCB changed	8
