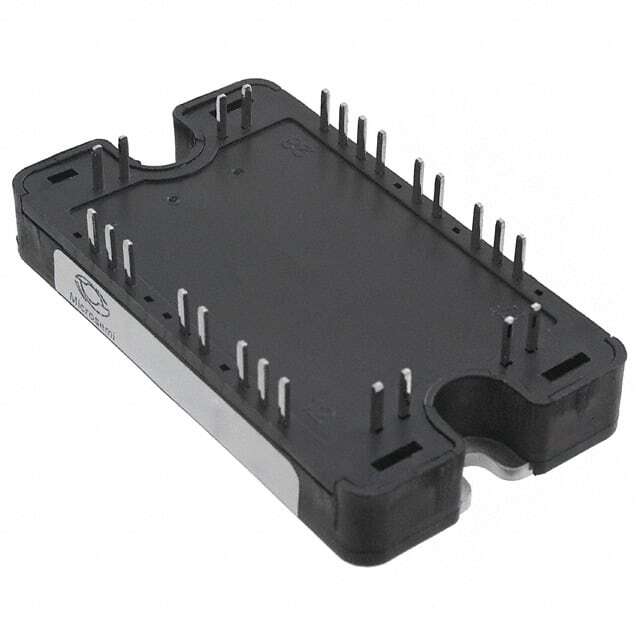

APTGT50DDA120T3G

SKU: 109713

Manufacturer: Microchip Technology

Trans IGBT Module N-CH 1200V 75A 270000mW 32-Pin Case SP-3 Tube

3460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Channel Type	N
Configuration	Dual
Typical Collector Emitter Saturation Voltage (V)	1.7
Collector-Emitter Voltage-Max (V)	1200
Maximum Power Dissipation (mW)	270000
Maximum Gate Emitter Voltage (V)	±20
Maximum Continuous Collector Current (A)	75
Maximum Gate Emitter Leakage Current (uA)	0.4
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tube
Original Package	Case SP-3
Pin Count	32
Terminal Form	Screw
Package Height	11.5
Package Length	73.4
Package Width	40.8
