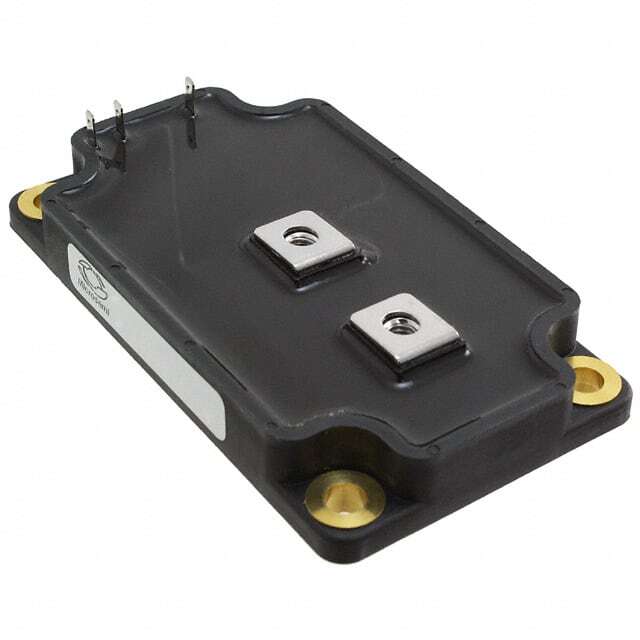

APTGL475U120DAG

SKU: 136209

Manufacturer: Microchip Technology

Trans IGBT Module N-CH 1200V 610A 2307000mW 5-Pin Case SP-6 Tube

1560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Channel Type	N
Configuration	Single
Typical Collector Emitter Saturation Voltage (V)	1.8
Collector-Emitter Voltage-Max (V)	1200
Maximum Power Dissipation (mW)	2307000
Maximum Gate Emitter Voltage (V)	±20
Maximum Continuous Collector Current (A)	610
Operating Temperature-Min	-40
Operating Temperature-Max	175
Packing Method	Tube
Original Package	Case SP-6
Pin Count	5
Terminal Form	Screw
Package Height	15
Package Length	108
Package Width	62
