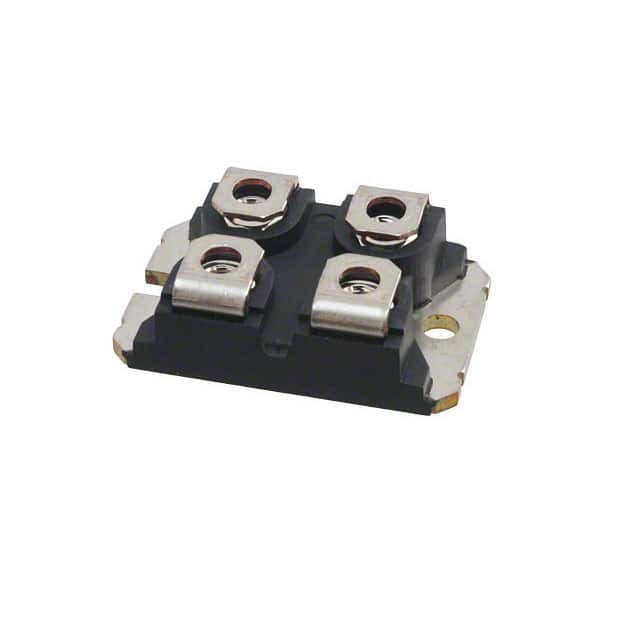

APT8015JVFR

SKU: 150410

Manufacturer: Microchip Technology

Trans MOSFET N-CH 800V 44A 4-Pin SOT-227 Tube

2880 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Dual Source
Process Technology	Power MOS V
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	800
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	44
Maximum Drain Source Resistance (mOhm)	150@10V
Typical Gate Charge @ Vgs (nC)	690@10V
Typical Gate Charge @ 10V (nC)	690
Typical Input Capacitance @ Vds (pF)	14715@25V
Maximum Power Dissipation (mW)	700000
Typical Fall Time (ns)	15
Typical Rise Time (ns)	20
Typical Turn-Off Delay Time (ns)	97
Typical Turn-On Delay Time (ns)	22
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	SOT-227
Pin Count	4
Standard Package Method	SOT
Terminal Form	Screw
Package Height	9.6(Max)
Package Length	38.2(Max)
Package Width	25.4(Max)
PCB changed	4
