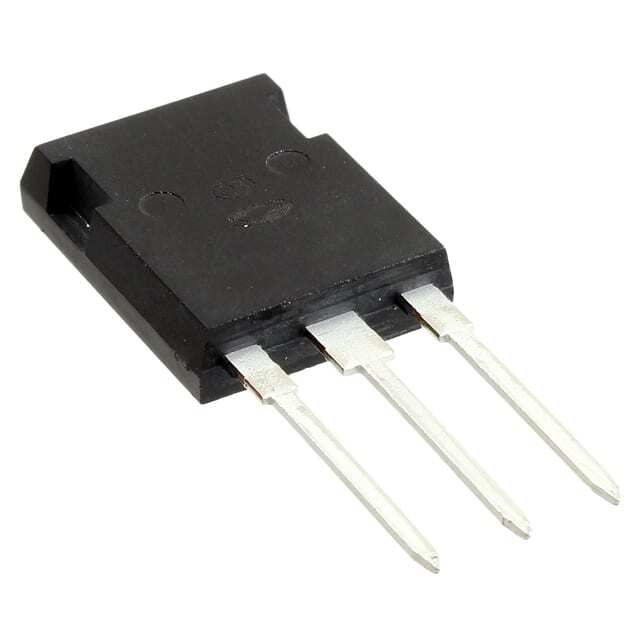

APT5014BFLLG

SKU: 81421

Manufacturer: Microchip Technology

Trans MOSFET N-CH 500V 35A 3-Pin(3+Tab) TO-247 Tube

1780 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	500
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	35
Maximum Drain Source Resistance (mOhm)	140@10V
Typical Gate Charge @ Vgs (nC)	72@10V
Typical Gate Charge @ 10V (nC)	72
Typical Input Capacitance @ Vds (pF)	3261@25V
Maximum Power Dissipation (mW)	403000
Typical Fall Time (ns)	3
Typical Rise Time (ns)	6
Typical Turn-Off Delay Time (ns)	23
Typical Turn-On Delay Time (ns)	11
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-247
Pin Count	3
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	21.46(Max)
Package Length	16.26(Max)
Package Width	5.31(Max)
PCB changed	3
Tab	Tab
