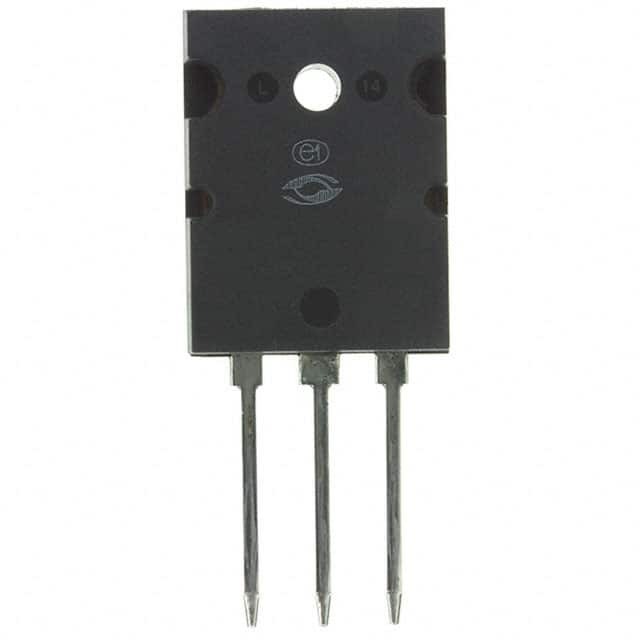

APT34N80LC3G

SKU: 15946

Manufacturer: Microchip Technology

Trans MOSFET N-CH 800V 34A 3-Pin(3+Tab) TO-264 Tube

1440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	800
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	34
Maximum Gate Source Leakage Current (nA)	200
Maximum IDSS (uA)	50
Maximum Drain Source Resistance (mOhm)	145@10V
Typical Gate Charge @ Vgs (nC)	180@10V
Typical Gate Charge @ 10V (nC)	180
Typical Input Capacitance @ Vds (pF)	4510@25V
Maximum Power Dissipation (mW)	417000
Typical Fall Time (ns)	6
Typical Rise Time (ns)	15
Typical Turn-Off Delay Time (ns)	70
Typical Turn-On Delay Time (ns)	25
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-264
Pin Count	3
Terminal Form	Through Hole
Package Height	26.49(Max)
Package Length	20.5(Max)
Package Width	5.21(Max)
PCB changed	3
Tab	Tab
