APT10M19SVRG

SKU: 88458

Manufacturer: Microchip Technology

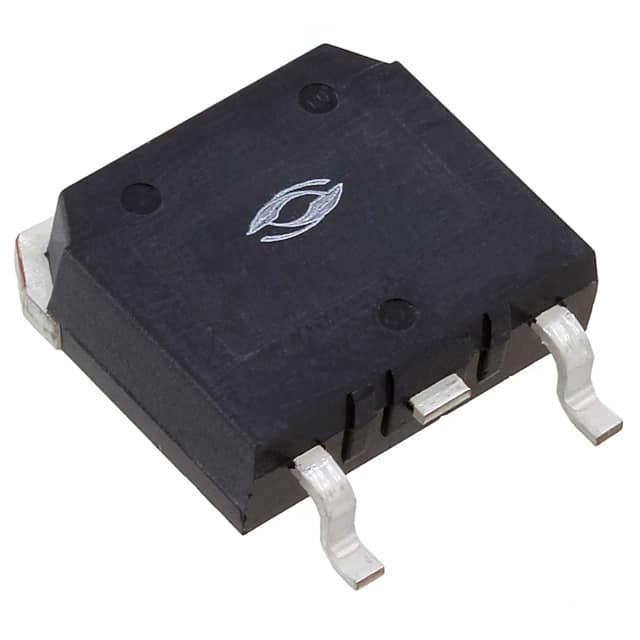

Trans MOSFET N-CH 100V 75A 3-Pin(2+Tab) D3PAK Tube

3030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Process Technology	Power MOS V
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	100
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	75
Maximum Drain Source Resistance (mOhm)	19@10V
Typical Gate Charge @ Vgs (nC)	200@10V
Typical Gate Charge @ 10V (nC)	200
Typical Input Capacitance @ Vds (pF)	5100@25V
Maximum Power Dissipation (mW)	370000
Typical Fall Time (ns)	20
Typical Rise Time (ns)	40
Typical Turn-Off Delay Time (ns)	50
Typical Turn-On Delay Time (ns)	16
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	D3PAK
Pin Count	3
Standard Package Method	TO-268
Terminal Form	Surface Mount
Package Height	5.08(Max)
Package Length	16.05(Max)
Package Width	13.99(Max)
PCB changed	2
Tab	Tab
