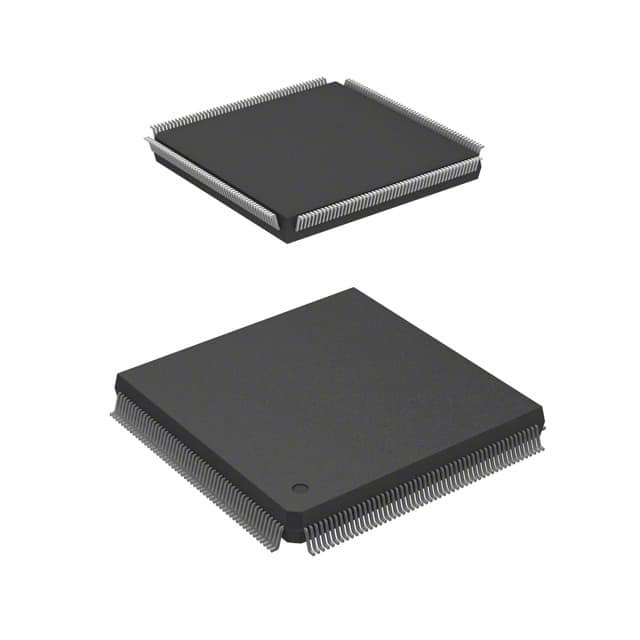

APA300-CQ208B

SKU: 157509

Manufacturer: Microchip Technology

FPGA ProASICPLUS Family 300K Gates 180MHz 0.22um Technology 2.5V 208-Pin CQFP Box

3480 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.2.c
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	ProASICPLUS
Process Technology	0.22um
User I/Os	158
Number of Inter Dielectric Layers	4
Number of Registers	8192
Operating Supply Voltage (V)	2.5
Device System Gates	300000
Program Memory Type	FLASH
Embedded Memory (Kbit)	72
Total Number of Block RAM	32
Device Logic Gates	300000
Number of Global Clocks	4
Device Number of DLLs/PLLs	2
PCIe	1
Programmability	Yes
Reprogrammability Support	Yes
Copy Protection	No
Opr. Frequency (MHz)	180
In-System Programmability	Yes
Speed Grade	STD
Operating Supply Voltage-Min (V)	2.3
Operating Supply Voltage-Max (V)	2.7
I/O Voltage (V)	2.5
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Box
Tradename	ProASIC
Original Package	CQFP
Pin Count	208
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	2.8
Package Length	29.21
Package Width	29.21
