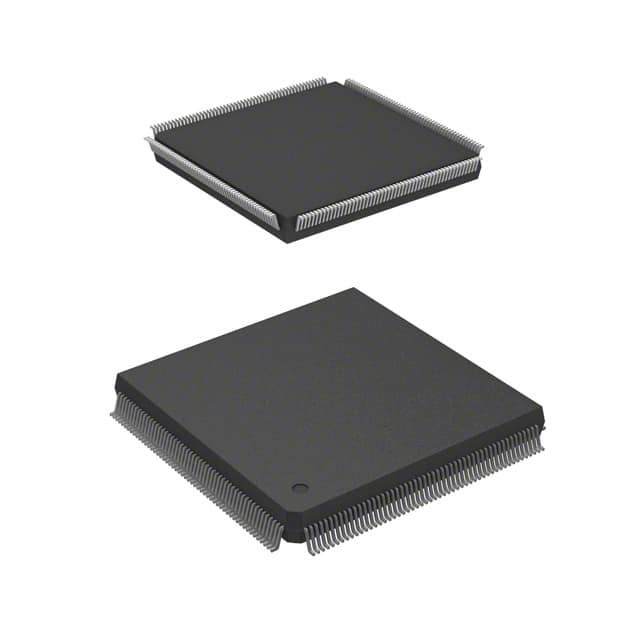

A54SX72A-1PQ208

SKU: 15780

Manufacturer: Microchip Technology

FPGA SX-A Family 72K Gates 4024 Cells 250MHz 0.25um Technology 2.5V 208-Pin PQFP Tray

4190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	SX-A
Process Technology	0.25um
User I/Os	171
Number of Inter Dielectric Layers	4
Number of Registers	4024
Operating Supply Voltage (V)	2.5
Logic Elements	4024
Device System Gates	108000
Program Memory Type	OTP
Device Logic Gates	72000
Device Logic Units	6036
Number of Global Clocks	3
JTAG Support	Yes
PCIe	1
Programmability	Yes
Reprogrammability Support	No
Copy Protection	No
Opr. Frequency (MHz)	250
In-System Programmability	No
Speed Grade	1
Maximum Propagation Delay Time (ns)	1.3
Operating Supply Voltage-Min (V)	2.25
Operating Supply Voltage-Max (V)	2.75
I/O Voltage (V)	3.3
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tray
Tradename	SX
Original Package	PQFP
Pin Count	208
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	3.4
Package Length	28
Package Width	28
PCB changed	208
