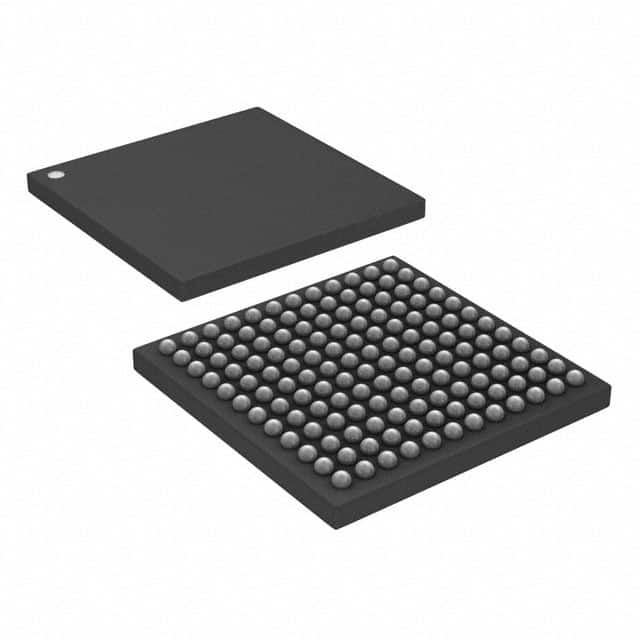

A54SX08A-FG144

SKU: 37009

Manufacturer: Microchip Technology

FPGA SX-A Family 8K Gates 512 Cells 238MHz 0.25um Technology 2.5V 144-Pin FBGA Tray

2330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	SX-A
Process Technology	0.25um
User I/Os	111
Number of Inter Dielectric Layers	3
Number of Registers	512
Operating Supply Voltage (V)	2.5
Logic Elements	512
Device System Gates	12000
Program Memory Type	OTP
Device Logic Gates	8000
Device Logic Units	768
Number of Global Clocks	3
JTAG Support	Yes
PCIe	1
Programmability	Yes
Reprogrammability Support	No
Copy Protection	No
Opr. Frequency (MHz)	238
In-System Programmability	No
Speed Grade	STD
Maximum Propagation Delay Time (ns)	1.2
Operating Supply Voltage-Min (V)	2.25
Operating Supply Voltage-Max (V)	2.75
I/O Voltage (V)	2.5
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tray
Tradename	SX
Pin Count	144
Standard Package Method	BGA
Original Package	FBGA
Terminal Form	Surface Mount
Package Height	1.05
Package Length	13
Package Width	13
PCB changed	144
