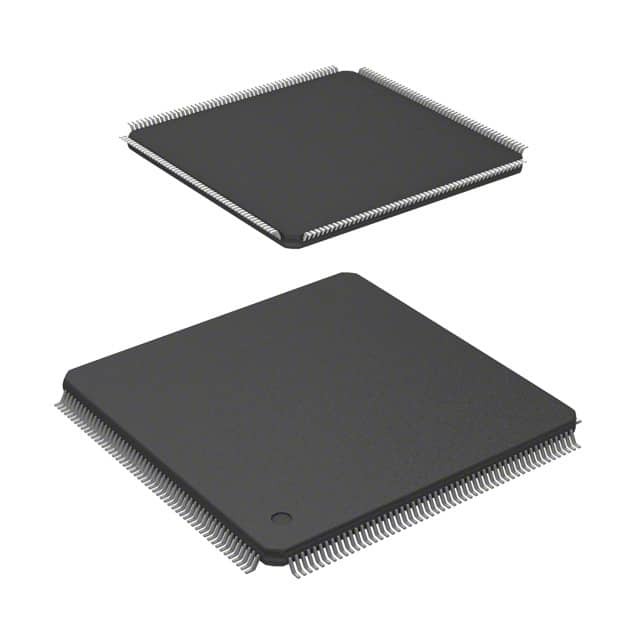

A42MX36-CQ208B

SKU: 66969

Manufacturer: Microchip Technology

FPGA 42MX Family 54K Gates 1184 Cells 79MHz/131MHz 0.45um Technology 3.3V/5V 208-Pin CQFP Box

2280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.2.c.
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	42MX
Process Technology	0.45um
User I/Os	176
Number of Inter Dielectric Layers	3
Number of Registers	1822
Operating Supply Voltage (V)	3.3
Logic Elements	1184
Device System Gates	54000
Program Memory Type	OTP
Embedded Memory (Kbit)	2.5
Device Logic Gates	54000
Device Logic Units	1184
Number of Global Clocks	6
JTAG Support	Yes
PCIe	1
Programmability	Yes
Reprogrammability Support	No
Copy Protection	No
Opr. Frequency (MHz)	79
In-System Programmability	No
Speed Grade	STD
Maximum Propagation Delay Time (ns)	2.7
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Box
Original Package	CQFP
Pin Count	208
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	2.8
Package Length	29.21
Package Width	29.21
