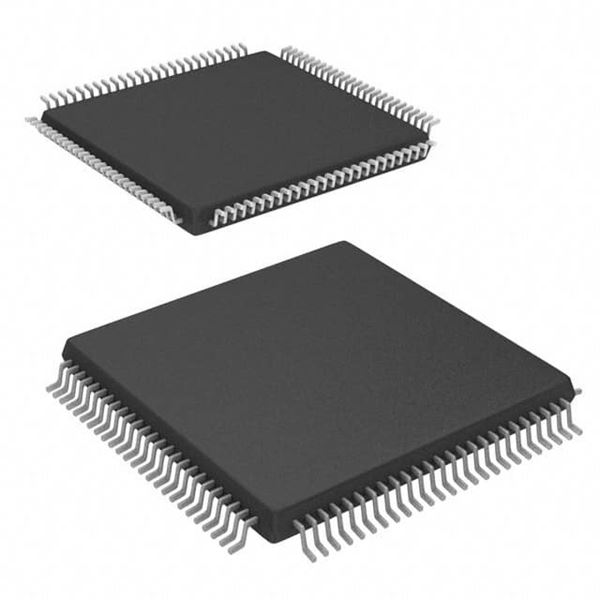

A42MX09-FVQG100

SKU: 58295

Manufacturer: Microchip Technology

FPGA 42MX Family 14K Gates 336 Cells 77MHz/129MHz 0.45um Technology 3.3V/5V 100-Pin VQFP Tray

1070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	42MX
Process Technology	0.45um
User I/Os	83
Number of Inter Dielectric Layers	3
Number of Registers	516
Operating Supply Voltage (V)	3.3
Logic Elements	336
Device System Gates	14000
Program Memory Type	OTP
Device Logic Gates	14000
Device Logic Units	336
Number of Global Clocks	2
JTAG Support	Yes
PCIe	1
Programmability	Yes
Reprogrammability Support	No
Copy Protection	No
Opr. Frequency (MHz)	77
In-System Programmability	No
Speed Grade	F
Maximum Propagation Delay Time (ns)	3.5
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	5.25
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tray
Original Package	VQFP
Pin Count	100
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1
Package Length	14
Package Width	14
PCB changed	100
