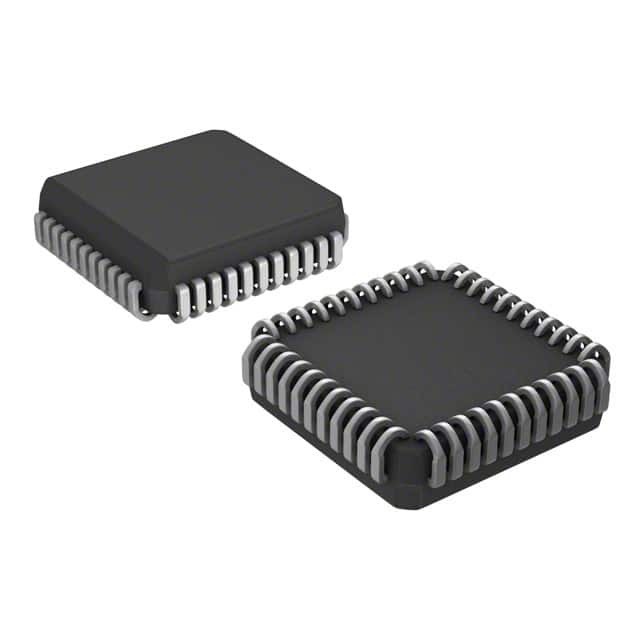

A40MX04-PL44M

SKU: 52913

Manufacturer: Microchip Technology

FPGA 40MX Family 6K Gates 547 Cells 83MHz/139MHz 0.45um Technology 3.3V/5V 44-Pin PLCC Box

1310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.2.c.
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	40MX
Process Technology	0.45um
User I/Os	34
Number of Inter Dielectric Layers	3
Number of Registers	273
Operating Supply Voltage (V)	3.3
Logic Elements	547
Device System Gates	6000
Program Memory Type	OTP
Device Logic Gates	6000
Device Logic Units	547
Number of Global Clocks	1
JTAG Support	Yes
PCIe	1
Programmability	Yes
Reprogrammability Support	No
Copy Protection	No
Opr. Frequency (MHz)	83
In-System Programmability	No
Speed Grade	STD
Maximum Propagation Delay Time (ns)	2.7
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Box
Original Package	PLCC
Pin Count	44
Standard Package Method	LCC
Terminal Form	Surface Mount
Package Height	3.68(Min)
Package Length	16.59
Package Width	16.59
PCB changed	44
