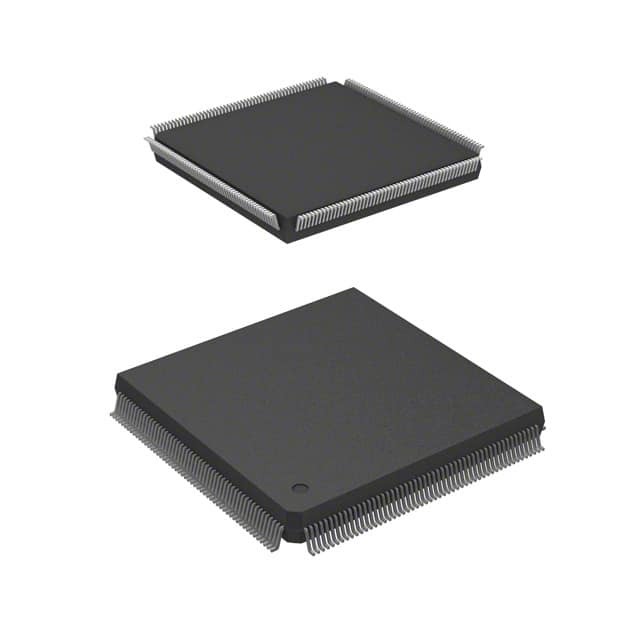

A3P1000-PQ208I

SKU: 15769

Manufacturer: Microchip Technology

FPGA ProASIC®3 Family 1M Gates 231MHz 130nm Technology 1.5V 208-Pin PQFP Tray

3080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	ProASIC®3
Process Technology	130nm
User I/Os	154
Number of I/O Banks	4
Number of Inter Dielectric Layers	7
Number of Registers	24576
Operating Supply Voltage (V)	1.5
Device System Gates	1000000
Program Memory Type	FLASH
Embedded Memory (Kbit)	144
Total Number of Block RAM	32
Device Logic Gates	1000000
Number of Global Clocks	18
Device Number of DLLs/PLLs	1
Maximum Supply Current (mA)	75
JTAG Support	Yes
Programmability	Yes
Reprogrammability Support	Yes
Copy Protection	No
Opr. Frequency (MHz)	231
In-System Programmability	Yes
Speed Grade	STD
Single-Ended I/O Standards	LVTTL
Maximum Differential I/O Pairs	35
Maximum I/O Performance	700Mbps
Operating Supply Voltage-Min (V)	1.425
Operating Supply Voltage-Max (V)	1.575
I/O Voltage (V)	2.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Tradename	ProASIC
Original Package	PQFP
Pin Count	208
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	3.4
Package Length	28
Package Width	28
PCB changed	208
