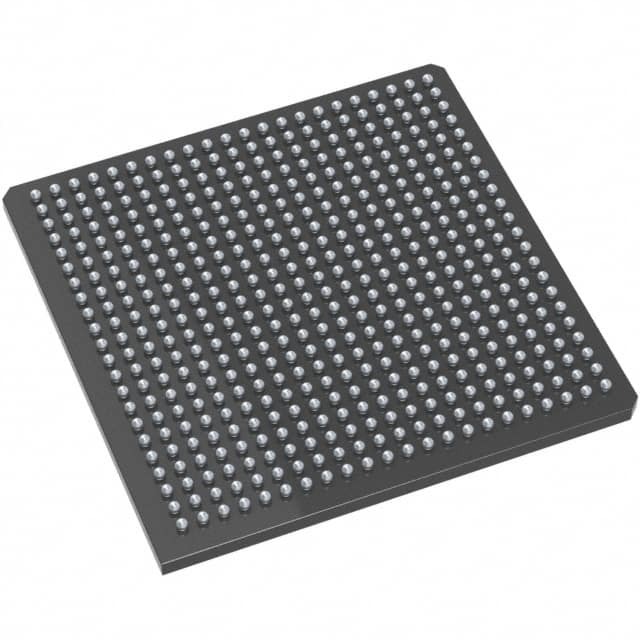

A3P1000-1FG484M

SKU: 93432

Manufacturer: Microchip Technology

FPGA ProASIC®3 Family 1M Gates 272MHz 130nm Technology 1.5V 484-Pin FBGA Tray

2870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.2.c
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	ProASIC®3
Process Technology	130nm
User I/Os	300
Number of I/O Banks	4
Number of Inter Dielectric Layers	7
Number of Registers	24576
Operating Supply Voltage (V)	1.5
Device System Gates	1000000
Program Memory Type	FLASH
Embedded Memory (Kbit)	144
Total Number of Block RAM	32
Device Logic Gates	1000000
Number of Global Clocks	18
Device Number of DLLs/PLLs	1
JTAG Support	Yes
Programmability	Yes
Reprogrammability Support	Yes
Copy Protection	No
Opr. Frequency (MHz)	272
In-System Programmability	Yes
Speed Grade	1
Single-Ended I/O Standards	LVTTL
Maximum Differential I/O Pairs	74
Maximum I/O Performance	700Mbps
Operating Supply Voltage-Min (V)	1.425
Operating Supply Voltage-Max (V)	1.575
I/O Voltage (V)	1.5
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tray
Tradename	ProASIC
Original Package	FBGA
Pin Count	484
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.73
Package Length	23
Package Width	23
PCB changed	484
