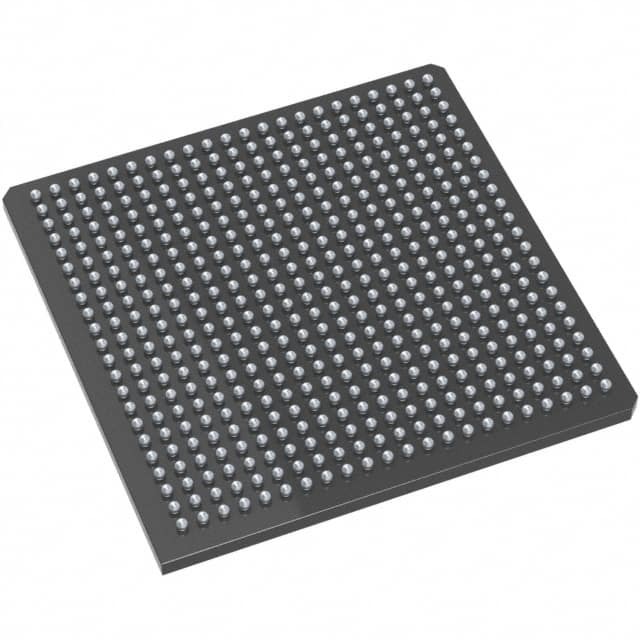

A2F500M3G-FGG484

SKU: 52906

Manufacturer: Microchip Technology

FPGA SmartFusion Family 500K Gates 100MHz 130nm Technology 1.5V 484-Pin FBGA

1070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.d.
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	SmartFusion
Process Technology	130nm
User I/Os	204
Number of I/O Banks	6
Number of Inter Dielectric Layers	7
Number of Registers	11520
Operating Supply Voltage (V)	1.5
Device System Gates	500000
Program Memory Type	FLASH
Embedded Memory (Kbit)	64
Total Number of Block RAM	24
Device Logic Gates	500000
EMACs	1
Device Number of DLLs/PLLs	2
Maximum Supply Current (mA)	16.5
JTAG Support	Yes
Programmability	Yes
Reprogrammability Support	No
Copy Protection	No
Opr. Frequency (MHz)	100
In-System Programmability	No
Speed Grade	STD
Differential I/O Standards	LVPECL
Single-Ended I/O Standards	LVTTL
Maximum I/O Performance	16Gbps
Operating Supply Voltage-Min (V)	1.425
Operating Supply Voltage-Max (V)	1.575
I/O Voltage (V)	1.8
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	SmartFusion
Original Package	FBGA
Pin Count	484
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.73
Package Length	23
Package Width	23
PCB changed	484
