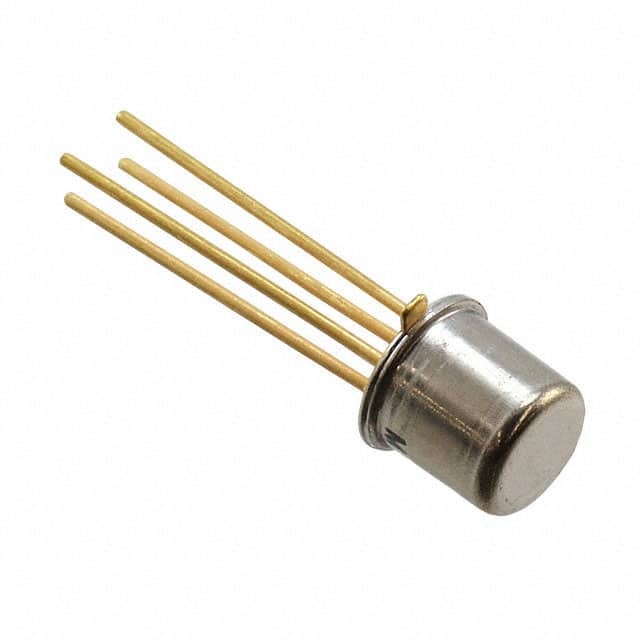

2N2857

SKU: 7551

Manufacturer: Microchip Technology

Trans RF BJT NPN 15V 0.04A 4-Pin TO-72

60 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	NPN
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	30
Collector-Emitter Voltage-Max (V)	15
Collector-Emitter Voltage Range-Max (V)	<20
Maximum Collector-Emitter Saturation Voltage (V)	0.4@1mA@10mA
Maximum Emitter Base Voltage (V)	3
Maximum Base Emitter Saturation Voltage (V)	1@1mA@10mA
Maximum DC Collector Current (A)	0.04
Maximum DC Collector Current Range (A)	0.001 to 0.06
Maximum Emitter Cut-Off Current (nA)	10000
Maximum Collector Cut-Off Current (nA)	10
Operational Bias Conditions	6V/1.5mA
Minimum DC Current Gain	30@3mA@1V
Minimum DC Current Gain Range	30 to 50
Maximum Junction Ambient Thermal Resistance	400°C/W
Maximum Power Dissipation (mW)	200
Typical Power Gain (dB)	12.5(Min)
Maximum Transition Frequency (MHz)	1600(Typ)
Maximum Noise Figure (dB)	4.5(Typ)
Operating Temperature-Min	-65
Operating Temperature-Max	200
Original Package	TO-72
Pin Count	4
Standard Package Method	TO-72
Diameter	5.84(Max)
Terminal Form	Through Hole
Package Height	5.33(Max)
