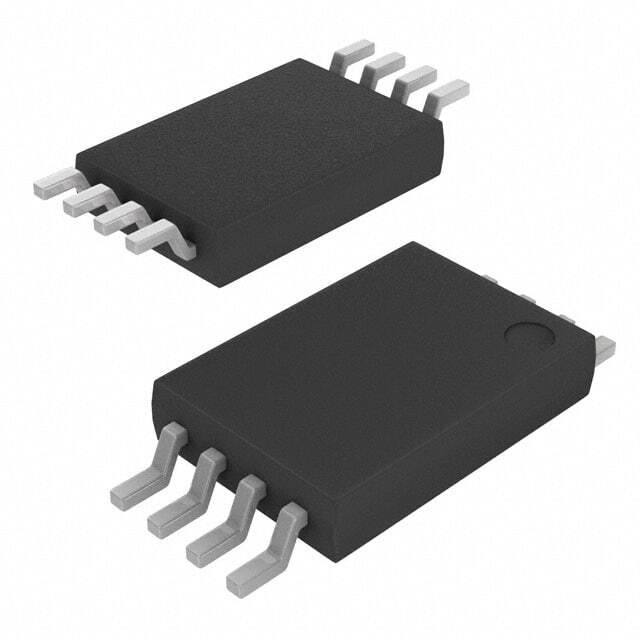

25LC640A-I/ST

SKU: 9556

Manufacturer: Microchip Technology

EEPROM Serial-SPI 64K-bit 8K x 8 3.3V/5V Automotive 8-Pin TSSOP Tube

5530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.32.00.51
Automotive	Yes
PPAP	Yes
Chip Density (bit)	64K
Organization	8Kx8
Address Bus Width (bit)	16
Programmability	Yes
Data Retention (Year)	200(Min)
Max. Access Time (ns)	100
Maximum Operating Frequency (MHz)	5
Process Technology	CMOS
Interface Type	Serial-SPI
Operating Supply Voltage-Min (V)	2.5
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Operating Current (mA)	5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Hardware Data Protection	Yes
Packing Method	Tube
Number of Bits per Word (bit)	8
Pin Count	8
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1
Package Length	3
Package Width	4.4
PCB changed	8
