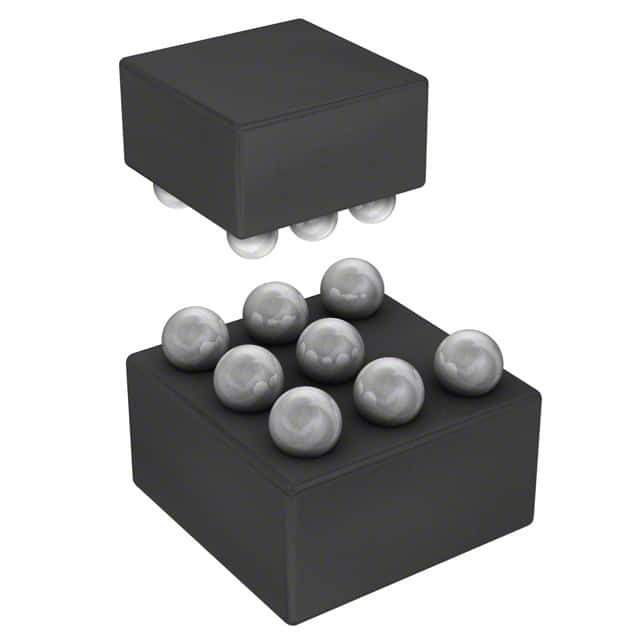

24AA512T-I/CS17K

SKU: 157227

Manufacturer: Microchip Technology

EEPROM Serial-2Wire 512K-bit 64K x 8 2.5V/3.3V/5V 8-Pin WLCSP T/R

1940 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.32.00.51
Automotive	No
PPAP	No
Chip Density (bit)	512K
Organization	64Kx8
Address Bus Width (bit)	3
Programmability	Yes
Data Retention (Year)	200(Min)
Max. Access Time (ns)	3500
Maximum Operating Frequency (MHz)	0.1
Process Technology	CMOS
Interface Type	Serial-2Wire
Operating Supply Voltage-Min (V)	1.7
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	5.5
Programming Voltage (V)	1.8 to 5.5
Operating Current (mA)	5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Hardware Data Protection	Yes
Packing Method	Tape and Reel
Original Package	WLCSP
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.3
