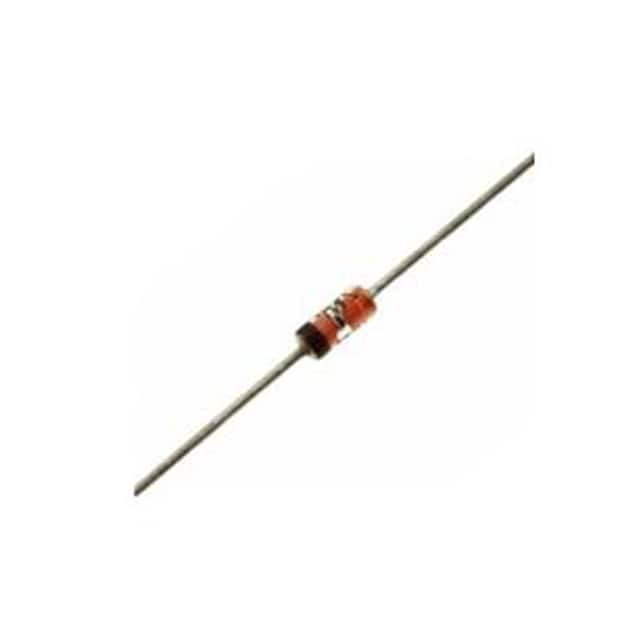

1N5314

SKU: 9912

Manufacturer: Microchip Technology

Current Regulator Diode 100V 5.17mA 500mW 2-Pin DO-35 Bag

2430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Maximum Peak Operating Voltage (V)	100
Maximum Limiting Voltage (V)	2.9
Maximum Regulator Current (mA)	5.17
Minimum Dynamic Impedance (MOhm)	0.235
Minimum Knee Impedance (MOhm)	0.012
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-65
Operating Temperature-Max	175
Packing Method	Bag
Original Package	DO-35
Pin Count	2
Standard Package Method	DO-204-AH
Diameter	2.29(Max)
Terminal Form	Through Hole
Package Length	5.08(Max)
PCB changed	2
