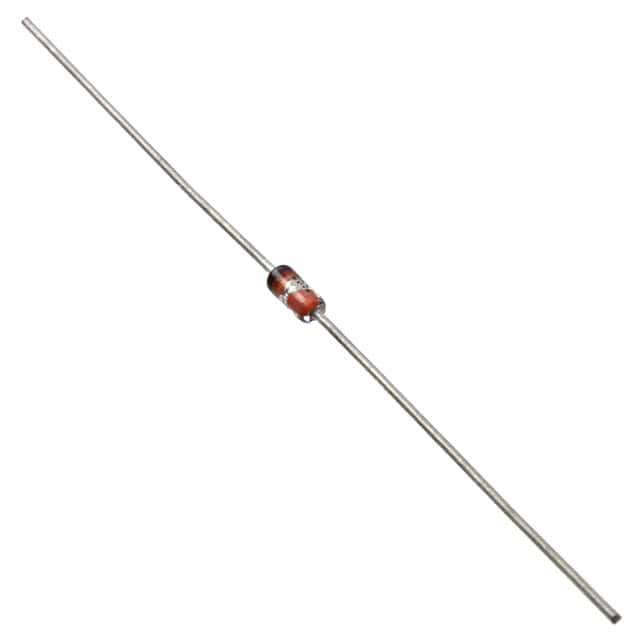

1N5280B

SKU: 58176

Manufacturer: Microchip Technology

Zener Diode Single 190V 5% 2400Ohm 500mW 2-Pin DO-35 Bag

1380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	190
Zener Voltage Tolerance	5%
Maximum Forward Voltage (V)	1.5
Maximum Power Dissipation (mW)	500
Test Current (mA)	0.66
Maximum Reverse Leakage Current (uA)	0.1
Maximum Zener Impedance (Ohm)	2400
Maximum Power Dissipation @ 25C (mW)	480
Operating Temperature-Min	-65
Operating Temperature-Max	175
Typical Voltage Temperature Coefficient	0.011%/°C(Max)
Packing Method	Bag
Product Weight (g)	0.2
Original Package	DO-35
Pin Count	2
Standard Package Method	DO-204-AH
Diameter	2.29(Max)
Terminal Form	Through Hole
Package Length	5.08(Max)
PCB changed	2
