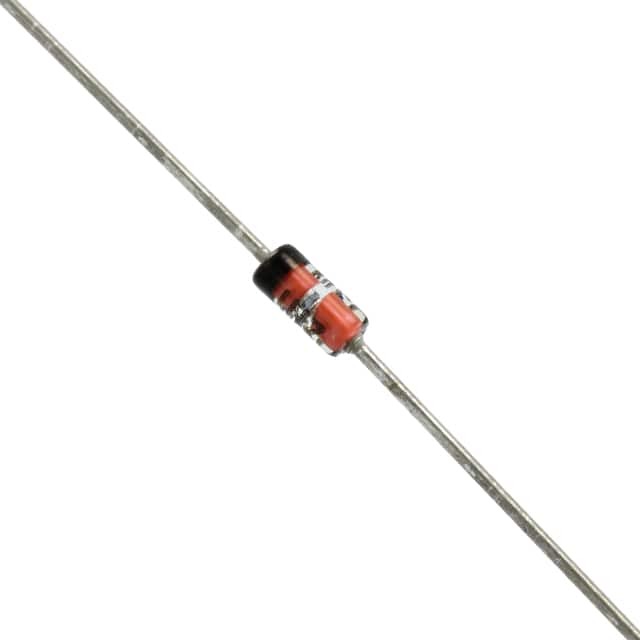

1N3070

SKU: 7851

Manufacturer: Microchip Technology

Rectifier Diode Switching 175V 0.1A 50ns 2-Pin DO-7

930 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8541.10.00.70
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Switching Diode
Maximum DC Reverse Voltage (V)	200
Configuration	Single
Peak Reverse Repetitive Voltage (V)	175
Maximum Continuous Forward Current (A)	0.1
Peak Non-Repetitive Surge Current (A)	2
Peak Forward Voltage (V)	1
Peak Reverse Current (uA)	0.1
Maximum Power Dissipation (mW)	500
Peak Reverse Recovery Time (ns)	50
Operating Temperature-Min	-65
Operating Temperature-Max	175
Original Package	DO-7
Pin Count	2
Standard Package Method	DO-204-AA
Diameter	2.72(Max)
Terminal Form	Through Hole
Package Length	7.62(Max)
PCB changed	2
