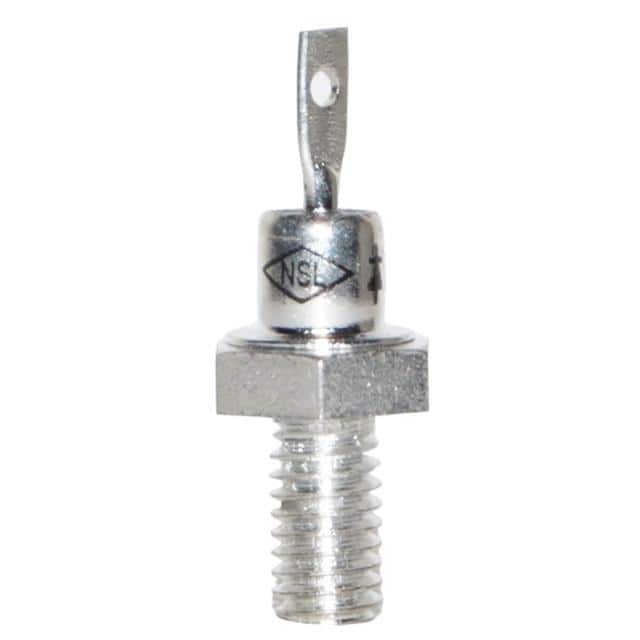

1N2976B

SKU: 29770

Manufacturer: Microchip Technology

Zener Diode Single 12V 5% 3Ohm 10000mW 2-Pin DO-4 Tray

3970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	12
Zener Voltage Tolerance	5%
Maximum Power Dissipation (mW)	10000
Test Current (mA)	210
Maximum Reverse Leakage Current (uA)	10
Maximum Regulator Current (mA)	820
Maximum Zener Impedance (Ohm)	3
Operating Temperature-Min	-65
Operating Temperature-Max	175
Supplier Temperature Grade	Commercial
Typical Voltage Temperature Coefficient	0.079%/°C(Max)
Packing Method	Tray
Original Package	DO-4
Pin Count	2
Standard Package Method	DO-203-AA
Terminal Form	Stud
Package Height	21.8(Max)
Package Length	12.81(Max)
Package Width	11.1(Max)
PCB changed	2
