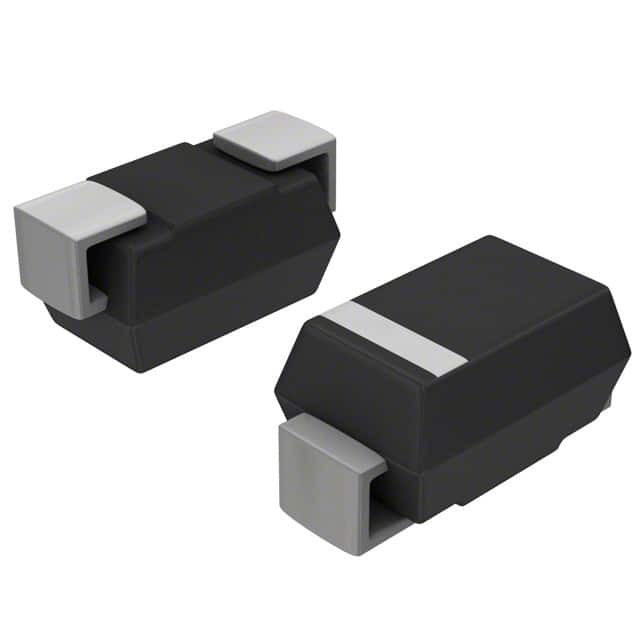

SMBJ51CA-TP

SKU: 148938

Manufacturer: Micro Commercial Components

TVS Diode Single Bi-Dir 51V 600W 2-Pin SMB T/R

3420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	56.7
Maximum Clamping Voltage (V)	82.4
Maximum Reverse Stand-Off Voltage (V)	51
Peak Forward Surge Current (A)	100
Maximum Peak Pulse Current (A)	7.3
Maximum Reverse Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	600
Operating Temperature-Min	-55
Operating Temperature-Max	175
Maximum Power Dissipation (mW)	5000
Packing Method	Tape and Reel
Pin Count	2
Standard Package Method	DO-214-AA
Original Package	SMB
Terminal Form	Surface Mount
Package Height	2.62(Max)
Package Length	4.85(Max)
Package Width	3.94(Max)
PCB changed	2
