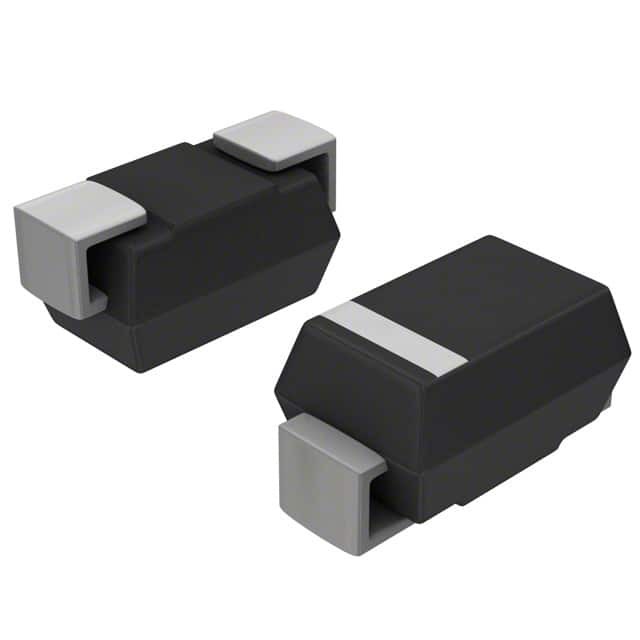

SMBJ16CA-TP

SKU: 148924

Manufacturer: Micro Commercial Components

TVS Diode Single Bi-Dir 16V 600W 2-Pin SMB T/R

2400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	17.8
Maximum Clamping Voltage (V)	26
Maximum Reverse Stand-Off Voltage (V)	16
Peak Forward Surge Current (A)	100
Maximum Peak Pulse Current (A)	23.1
Maximum Reverse Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	600
Operating Temperature-Min	-55
Operating Temperature-Max	175
Maximum Power Dissipation (mW)	5000
Packing Method	Tape and Reel
Pin Count	2
Standard Package Method	DO-214-AA
Original Package	SMB
Terminal Form	Surface Mount
Package Height	2.62(Max)
Package Length	4.85(Max)
Package Width	3.94(Max)
PCB changed	2
