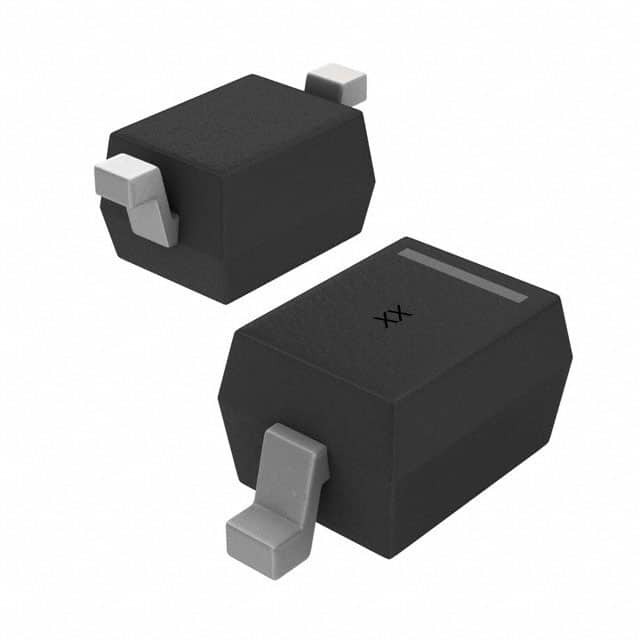

SD05C-TP

SKU: 101590

Manufacturer: Micro Commercial Components

ESD Suppressor Diode TVS Bi-Dir 5V 2-Pin SOD-323 T/R

1410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Type	TVS
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Maximum Working Voltage (V)	5
Minimum Breakdown Voltage (V)	6
Maximum Breakdown Voltage (V)	8
Maximum Clamping Voltage (V)	13.5(Typ)@8/20us
Maximum Peak Pulse Current (A)	30@8/20us
Maximum Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	350@8/20us
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	SOD-323
Pin Count	2
Standard Package Method	SOD
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	1.8(Max)
Package Width	1.35(Max)
PCB changed	2
