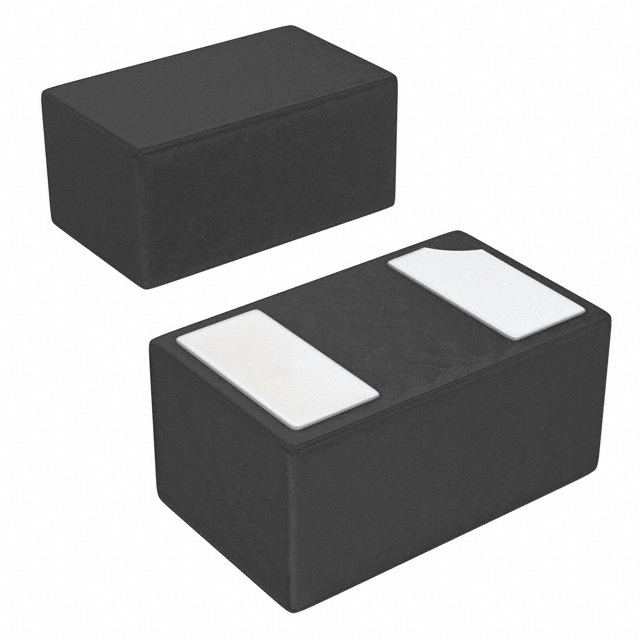

ESDLC3V3LB-TP Micro Commercial Components

ESDLC3V3LB-TP

SKU: 110741

Manufacturer: Micro Commercial Components

ESD Suppressor Diode TVS Bi-Dir 3.3V 2-Pin DFN T/R

Request Free Samples

890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	TVS
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Maximum Working Voltage (V)	3.3
Minimum Breakdown Voltage (V)	4.3
Maximum Breakdown Voltage (V)	6.8
Maximum Clamping Voltage (V)	11
Maximum Peak Pulse Current (A)	1
Maximum Leakage Current (uA)	0.1
Test Current (mA)	1
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	DFN
Pin Count	2
Terminal Form	Surface Mount
Package Height	0.5(Max)
Package Length	1.05(Max)
Package Width	0.65(Max)
