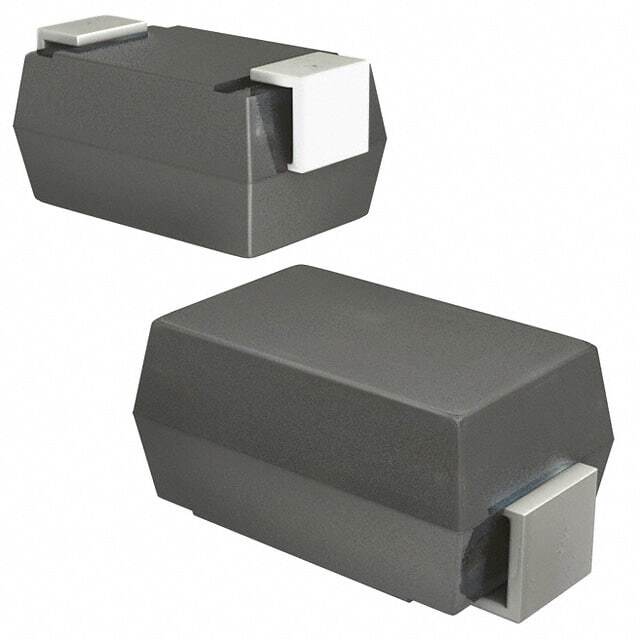

ES2D-LTP

SKU: 115208

Manufacturer: Micro Commercial Components

Rectifier Diode Switching 200V 2A 35ns 2-Pin SMA T/R

980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Switching Diode
Maximum DC Reverse Voltage (V)	200
Configuration	Single
Peak Reverse Repetitive Voltage (V)	200
Maximum Continuous Forward Current (A)	2
Peak Non-Repetitive Surge Current (A)	50
Peak Forward Voltage (V)	0.95
Peak Reverse Current (uA)	5
Peak Reverse Recovery Time (ns)	35
Operating Temperature-Min	-65
Operating Temperature-Max	175
Packing Method	Tape and Reel
Original Package	SMA
Pin Count	2
Standard Package Method	DO-214-AC
Terminal Form	Surface Mount
Package Height	2.44(Max)
Package Length	4.6(Max)
Package Width	2.9(Max)
PCB changed	2
