DL4732A-TP

SKU: 39842

Manufacturer: Micro Commercial Components

Zener Diode Single 4.7V 5% 8Ohm 1000mW 2-Pin MELF T/R

1480 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.10.00.50
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	4.7
Zener Voltage Tolerance	5%
Maximum Power Dissipation (mW)	1000
Test Current (mA)	53
Maximum Reverse Leakage Current (uA)	10
Maximum Regulator Current (mA)	193@Ta=50C
Maximum Zener Impedance (Ohm)	8
Maximum Power Dissipation @ 25C (mW)	1000
Operating Temperature-Min	-65
Operating Temperature-Max	175
Packing Method	Tape and Reel
Original Package	MELF
Pin Count	2
Standard Package Method	MELF

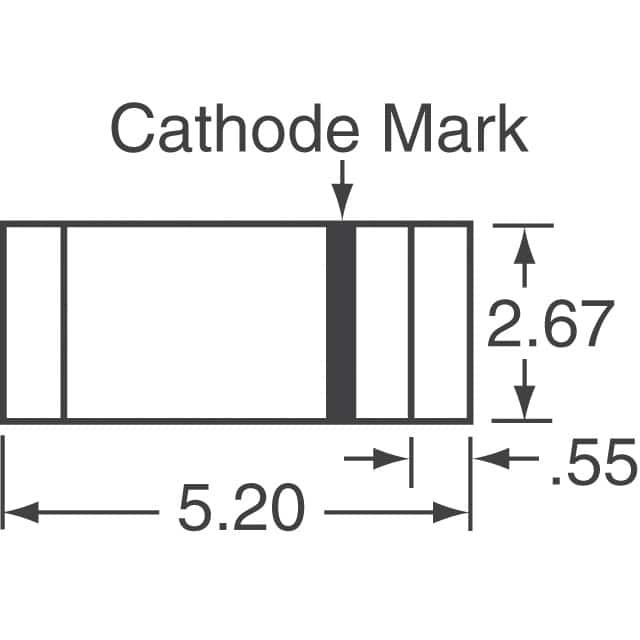

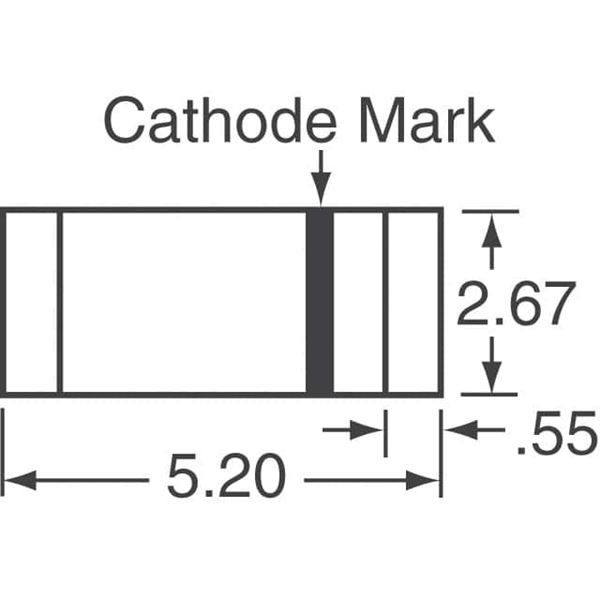

Diameter	2.67(Max)
Terminal Form	Surface Mount
Package Length	5.2(Max)
PCB changed	2
