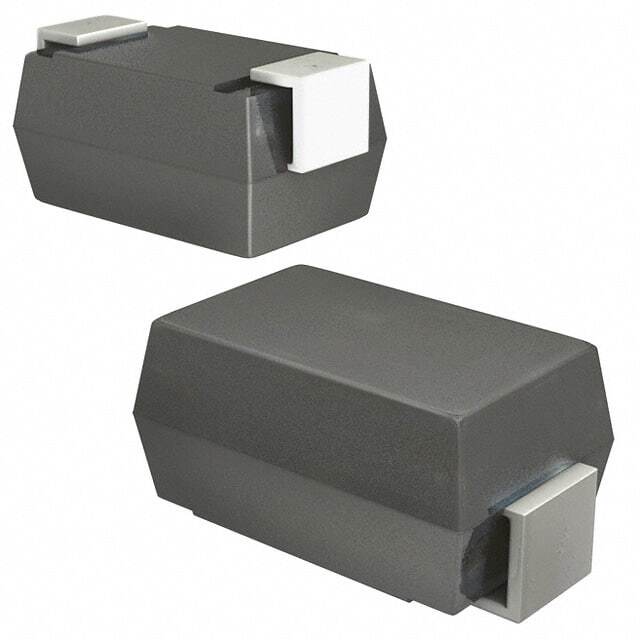

3SMAJ5923B-TP

SKU: 66809

Manufacturer: Micro Commercial Components

Zener Diode Single 8.2V 5% 3.5Ohm 3000mW 2-Pin SMA T/R

2540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	8.2
Zener Voltage Tolerance	5%
Maximum Power Dissipation (mW)	3000
Test Current (mA)	45.7
Maximum Reverse Leakage Current (uA)	5
Maximum Regulator Current (mA)	364
Maximum Zener Impedance (Ohm)	3.5
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	2
Standard Package Method	DO-214-AC
Original Package	SMA
Terminal Form	Surface Mount
Package Height	2.44(Max)
Package Length	4.6(Max)
Package Width	2.9(Max)
PCB changed	2
