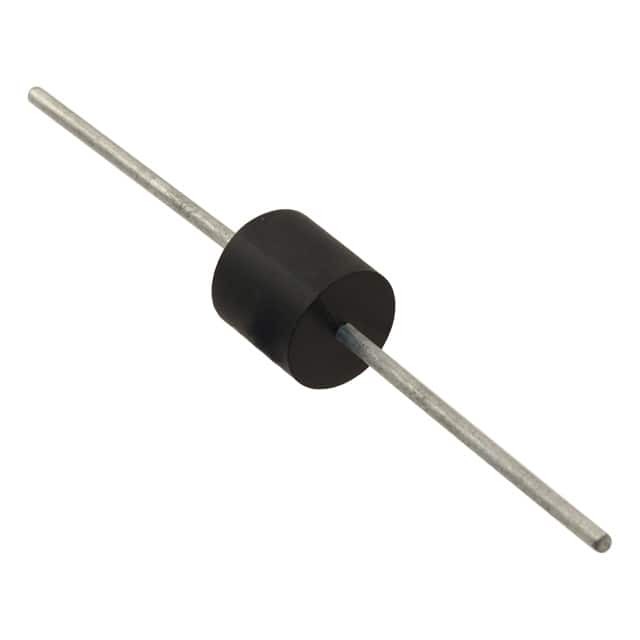

15KP220A-TP

SKU: 100436

Manufacturer: Micro Commercial Components

TVS Diode Single Uni-Dir 220V 15KW 2-Pin Case R-6 T/R

2450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	245
Maximum Clamping Voltage (V)	356
Maximum Reverse Stand-Off Voltage (V)	220
Maximum Peak Pulse Current (A)	42
Maximum Reverse Leakage Current (uA)	10
Test Current (mA)	5
Peak Pulse Power Dissipation (W)	15000
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tape and Reel
Original Package	Case R-6
Pin Count	2
Standard Package Method	Case R-6
Diameter	9.1(Max)
Terminal Form	Through Hole
Package Length	9.1(Max)
PCB changed	2
