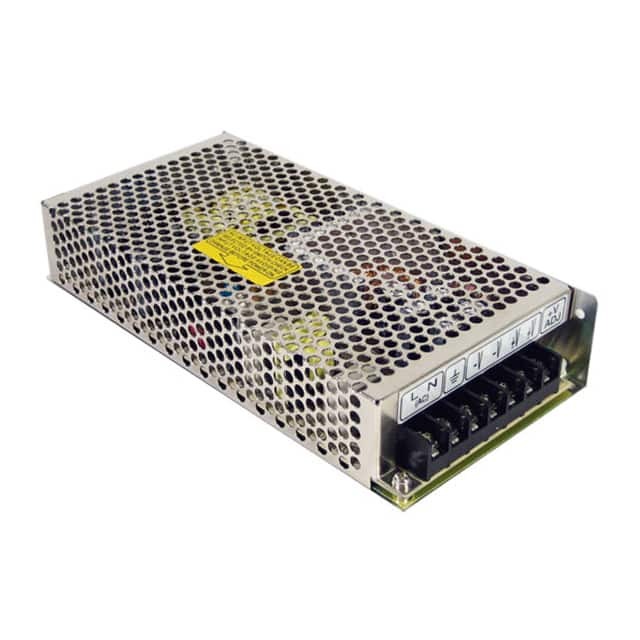

SE-100-15 MEAN WELL

SE-100-15

SKU: 134547

Manufacturer: MEAN WELL

AC/DC Power Supply Single-OUT 15V 7A 105W 7-Pin

Download sample

Request Free Samples

4280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Switching
Style	Enclosed
Input/Output Type	AC/DC
Number of Outputs	1
Output Type	Fixed
Output Voltage (V)	15
Output Current (A)	7
Output Power (W)	105
Minimum AC Input Voltage (V)	85
Maximum AC Input Voltage (V)	264
Minimum DC Input Voltage (V)	248
Maximum DC Input Voltage (V)	373
Minimum Isolation Voltage	3000VAC
Line Regulation	0.5%
Load Regulation	0.5%
Maximum Input Current (A)	2(Typ)
Input Frequency (Hz)	47 to 63
Tolerance (%)	±1
Efficiency (%)	84(Typ)
Configurable	No
Input Connector Type	Screw Terminal Block
Output Connector Type	Screw Terminal Block
Power Indicator	Yes
Ripple & Noise	120mV(Max)
Medical	No
Operating Temperature-Min	-20
Operating Temperature-Max	60
Product Weight (g)	550
Pin Count	7
Terminal Form	Chassis
Package Height	38
Package Length	159
Package Width	97
